Spirax Sarco IFT14 Steam Trap

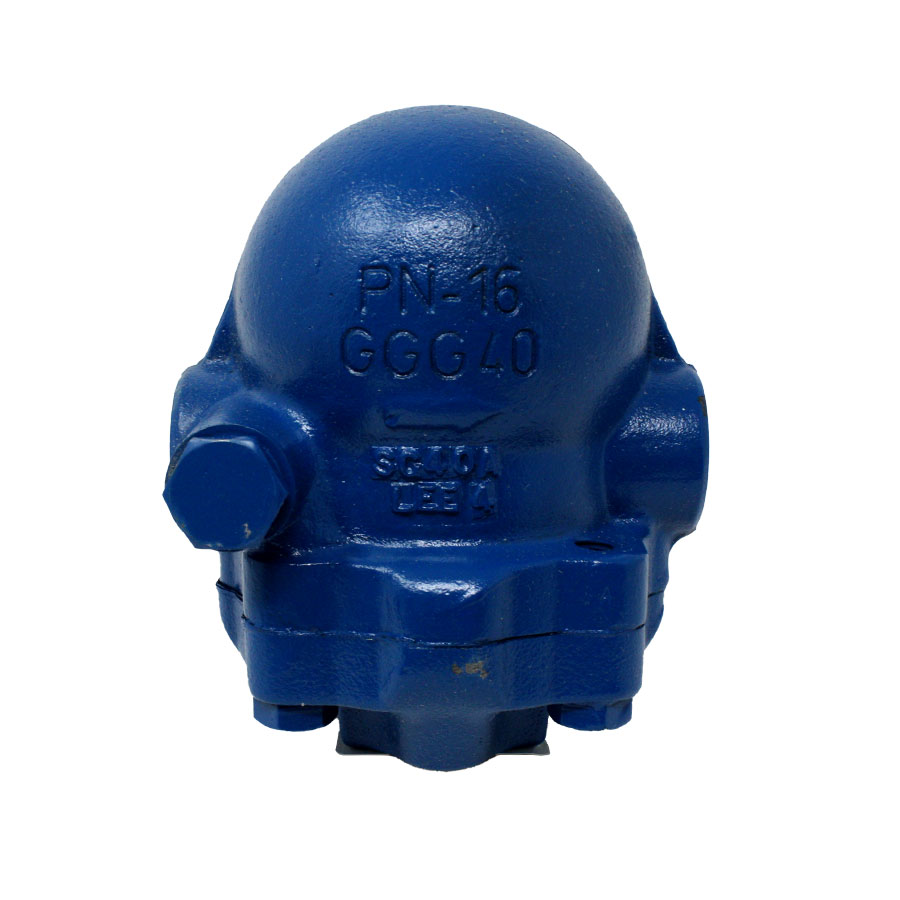

Spirax Sarco 6150093, IFT14-4.5B Ball Float and Thermostatic Steam Trap With Integral Spiratec Sensor, 1/2 in, FNPT, 240 deg C, 65 psig, Ductile Iron

CBPN:7513

MPN:6150093

Price:
$743.47 / EA

DESCRIPTION

Spirax Sarco Ball Float and Thermostatic Steam Trap, 1/2 in Nominal, NPT, 65 psig, Ductile Iron, 240 deg C

The IFT14 is an SG iron bodied ball float steam trap having stainless steel working internals, integral Spiratec sensor and automatic air venting facility. It can be supplied with either a WLS1 sensor to detect waterlogging and steam leakage or a SS1 sensor for steam leakage only. The IFT14 is supplied with horizontal connections, having flow from right to left (R - L), and can be simply integrated into all existing Spiratec monitoring systems.

Spirax Sarco 6150093, IFT14-4.5B Ball Float and Thermostatic Steam Trap With Integral Spiratec Sensor, 1/2 in, FNPT, 240 deg C, 65 psig, Ductile Iron

CBPN:7513

MPN:6150093

Price:
$743.47 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Ball Float and Thermostatic Steam Trap, 1/2 in Nominal, NPT, 65 psig, Ductile Iron, 240 deg C

The IFT14 is an SG iron bodied ball float steam trap having stainless steel working internals, integral Spiratec sensor and automatic air venting facility. It can be supplied with either a WLS1 sensor to detect waterlogging and steam leakage or a SS1 sensor for steam leakage only. The IFT14 is supplied with horizontal connections, having flow from right to left (R - L), and can be simply integrated into all existing Spiratec monitoring systems.

Specifications

BrandSpirax Sarco
Weight6.4 lbs
Nominal Size1/2 in
End StyleFNPT
Max Operating Pressure4.5 bar
Max Allowable Pressure16 barg/up to 100 deg C
Max Allowable Temperature250 deg C/up to 13 barg
MaterialDuctile Iron
Manufacturer NameSpirax-Sarco Inc
SeriesIFT14
Standards and ApprovalsDIN 1693 GGG 40 body | European Pressure Equipment Directive 97/23/EC

Item Features

  • Capsule: The BP99 / 32 capsule which is used in the FT14 is suitable for use on 150 deg C superheat at 0 barg and 50 deg C superheat at 32 barg
  • Maximum allowable pressure: 16 barg at 100 deg C
  • Maximum allowable temperature: 250 deg C at 13 barg
  • 14 barg maximum operating pressure for saturated steam service
  • Maximum cold hydraulic test pressure: 24 barg
  • PN16 body design conditions
