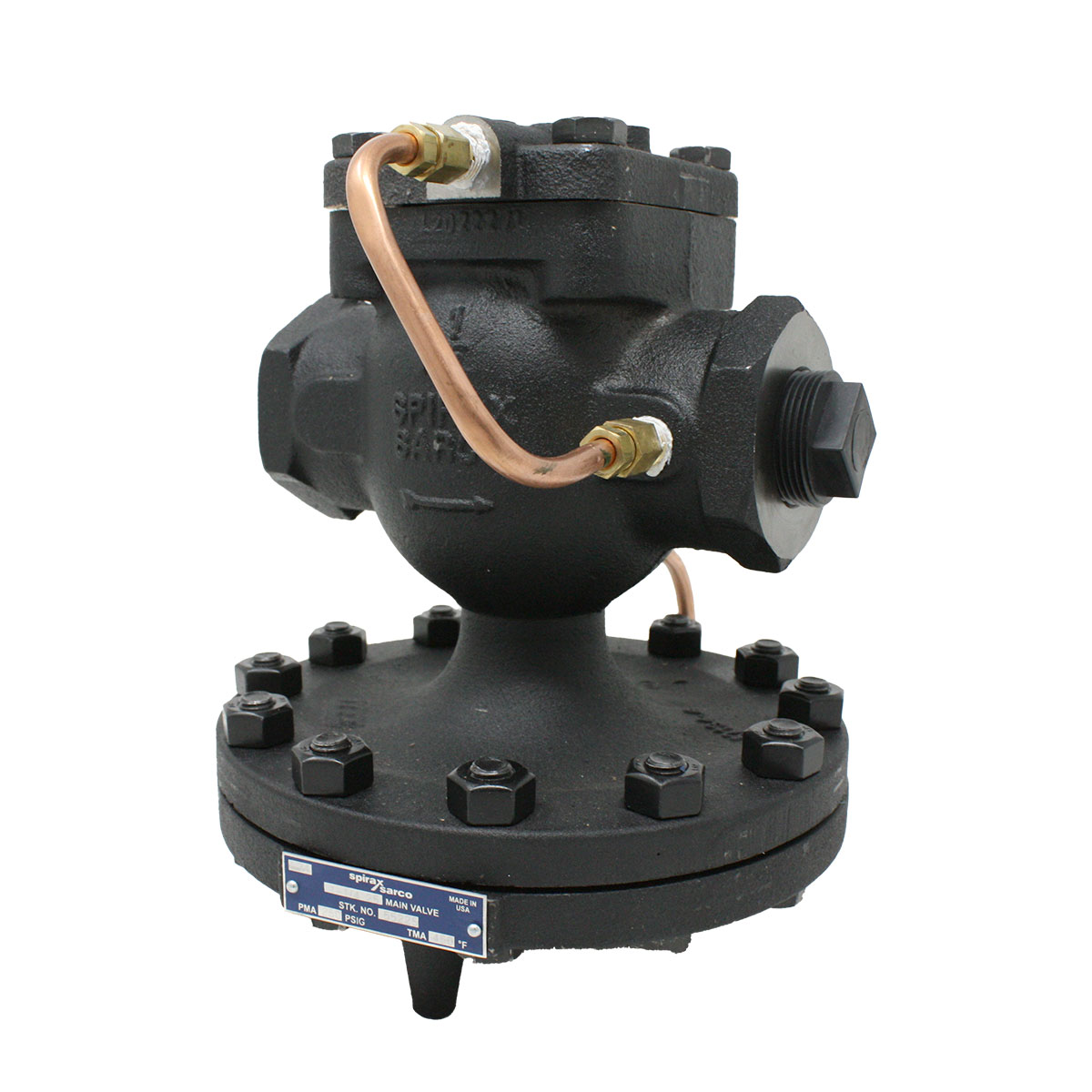

Spirax Sarco 61468, 25P Pilot Operated Pressure Reducing Main Valve, 2 in, NPT, 300 psig, 450 deg F
CBPN:46788
MPN:61468
Price:
$8227.31 / EA
DESCRIPTION
Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 2 in Nominal, NPT, 300 psig, 450 deg F, Cast Steel Body, Media: Steam, 21-1/2 in H
The 25P is a self-actuated pilotoperated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot,which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
Spirax Sarco 61468, 25P Pilot Operated Pressure Reducing Main Valve, 2 in, NPT, 300 psig, 450 deg F
CBPN:46788
MPN:61468
Price:
$8227.31 / EA
DESCRIPTION
Spirax Sarco Pressure Reducing Main Valve, Pilot Operated, 2 in Nominal, NPT, 300 psig, 450 deg F, Cast Steel Body, Media: Steam, 21-1/2 in H
The 25P is a self-actuated pilotoperated pressure regulator. Downstream pressure is fed back through an external sensing line to the pressure pilot,which adjusts the opening of the main valve so as to maintain the set pressure. The main valve can close tight for ANSI/FCI 70-2 Class IV shut off when steam is not required.
Specifications
Brand: Spirax Sarco
Weight: 65 lbs
Nominal Size: 2 in
End Style: NPT
Pressure Rating: 300 psig
Temperature Rating: 450 deg F
Body Material: Cast Steel
Dimensions: 21-1/2 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Steam
Series: 25P
Type: Pilot Operated
Warranty: 2 Years
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A216 Grade WCB Body
Item Features
- Combination of pilots allow for different types of control in one regulator
- Fatigue-tested diaphragm designed without a piston to prevent danger of sticking
- Stainless steel internals for excellent durability and resistance to corrosion
- Maximum allowable pressure: 300 psig at 0 to 600 deg F
- Maximum allowable temperature: 600 deg F at 0 to 250 psig
- Patented self scrubbing guide for long, trouble-free service
- Accurate control of pressure with choice of color coded springs
- Horizontal installation
- 10.6 in inlet to outlet
