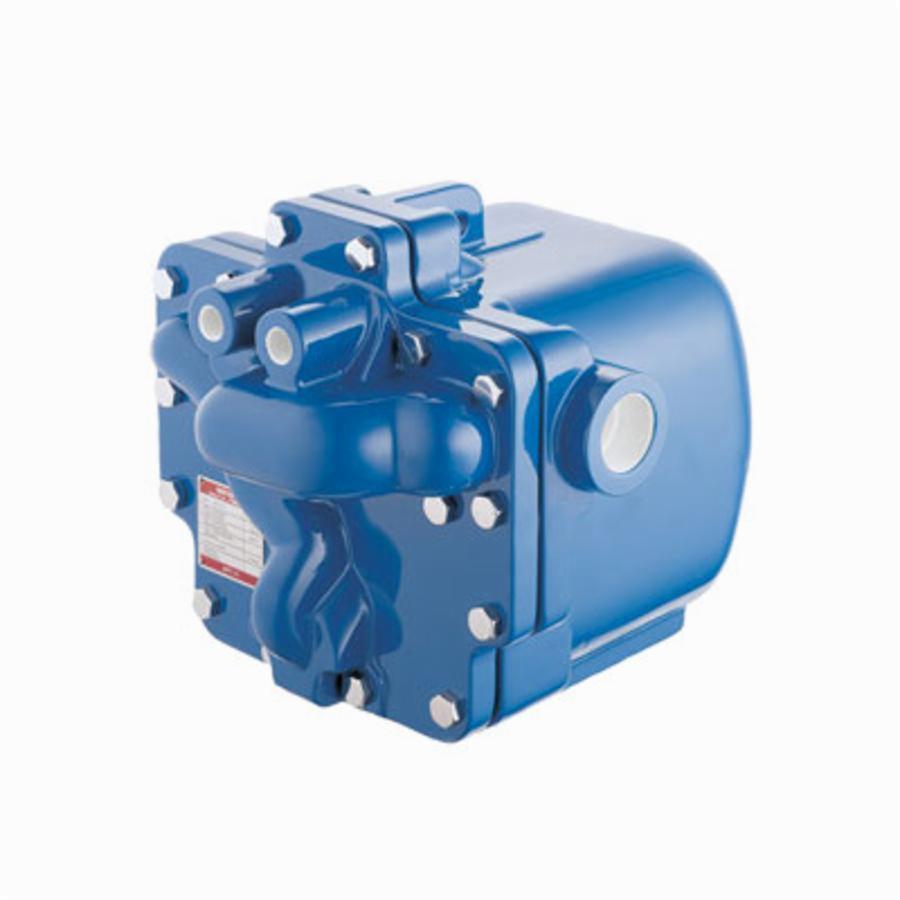

Spirax Sarco 6120362, APT14 Automatic Pump Trap, 1-1/2 in, ANSI 150 Flange, 389 mm L, 13.8 bar, SG Iron
CBPN:30697
MPN:6120362
DESCRIPTION
Spirax Sarco Pump Trap, Automatic, 1-1/2 in Nominal, ANSI 150 Flange, 389 mm Length, 13.8 bar, SG Iron, 198 deg C, 304 mm H
The Spirax Sarco APT14, APT14HC and APT14SHC automatic pump traps are flanged or screwed displacement receivers pressure rated to PN16. The units are capable of automatically trapping or pumping, depending on pipeline conditions. The unit is operated by steam and is used to remove condensate from process plant under all operating conditions including vacuum.
Spirax Sarco 6120362, APT14 Automatic Pump Trap, 1-1/2 in, ANSI 150 Flange, 389 mm L, 13.8 bar, SG Iron
CBPN:30697
MPN:6120362
DESCRIPTION
Spirax Sarco Pump Trap, Automatic, 1-1/2 in Nominal, ANSI 150 Flange, 389 mm Length, 13.8 bar, SG Iron, 198 deg C, 304 mm H
The Spirax Sarco APT14, APT14HC and APT14SHC automatic pump traps are flanged or screwed displacement receivers pressure rated to PN16. The units are capable of automatically trapping or pumping, depending on pipeline conditions. The unit is operated by steam and is used to remove condensate from process plant under all operating conditions including vacuum.
Specifications
Item Features
- Automatic pumps specifically designed to remove and recover condensate
- No electric motors or level switches, simplifying installation and making ideal for hazardous areas
- Pumps high temperature fluids without cavitation, reducing plant maintenance problems
- Self-contained units using steam or with regard to the MFP range, other pressurized gas as their motive power
- The shell of the product has been designed in accordance with AD Merkblatter/ASME VIII
- Maximum allowable pressure: 16 barg at 120 deg C
- Maximum allowable temperature: 300 deg C at 12.8 barg
- Maximum motive inlet pressure: 13.8 barg
- PN16 body design conditions
- 13.8 barg at 198 deg C maximum operating pressure for saturated steam service
- 5 barg maximum back pressure for standard pump
- 198 deg C at 13.8 barg maximum operating temperature for saturated steam service
- Maximum cold hydraulic test pressure: 24 barg
- Stainless steel internals
