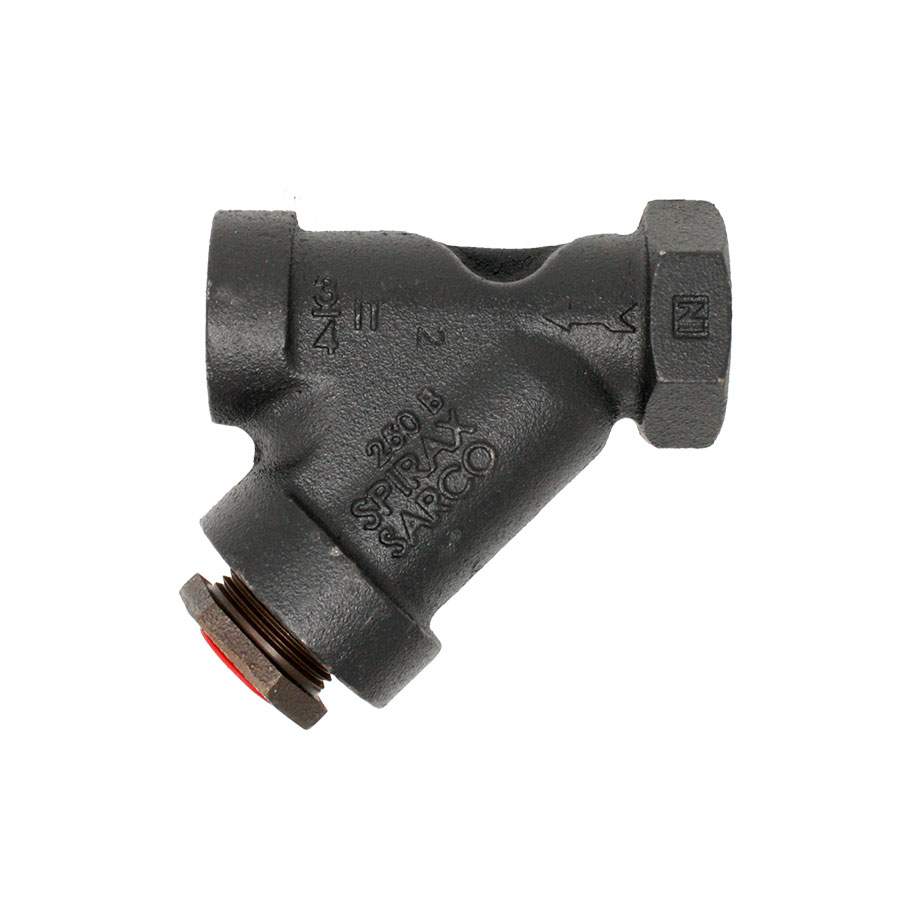

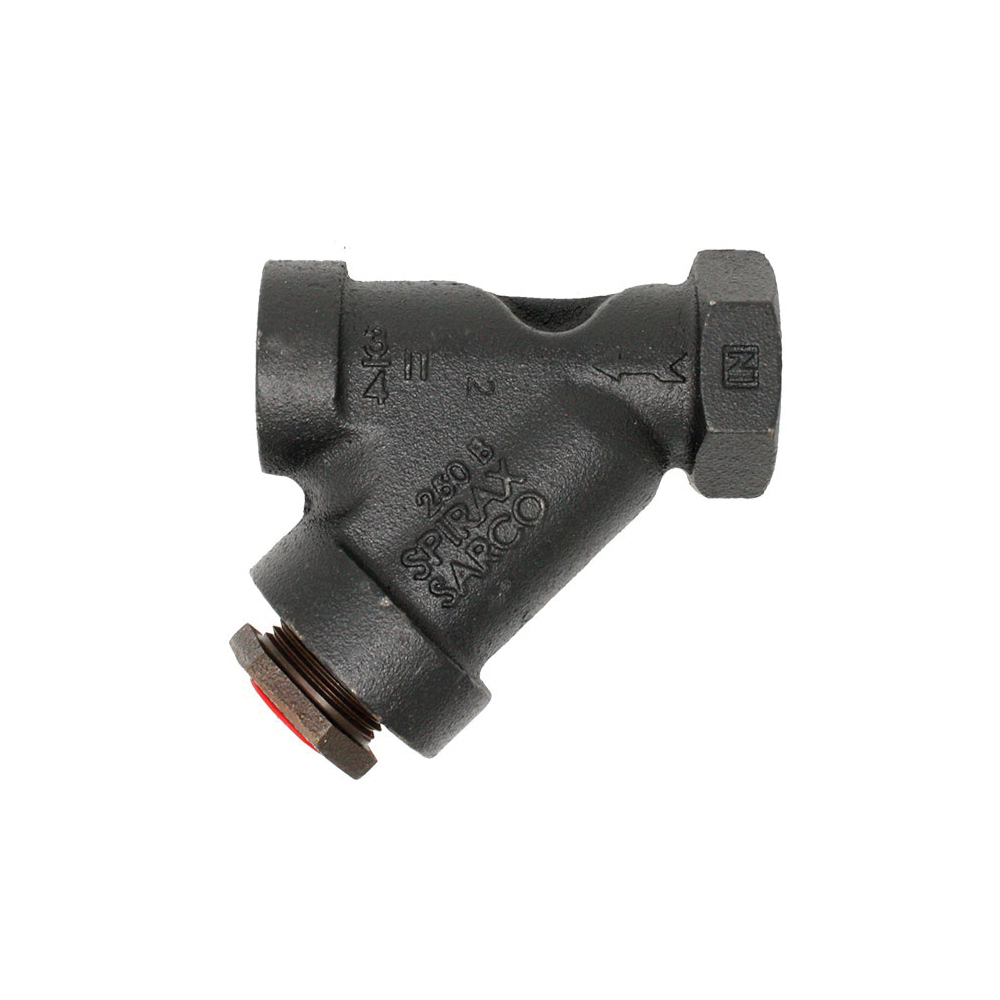

Spirax Sarco 60311, IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 3/4 in, 4.6 in OAL, FNPT Connection, Graphite
CBPN:7573
MPN:60311
Price:
$63.91 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 3/4 in Nominal, 4.6 in Overall Length, FNPT, 1/2 in FNPT Blow-Off, Graphite Softgoods, Cast Iron Body
Rated up to 250 psi maximum saturated steam pressure, Spirax Sarco 60311 should be installed with the flow direction as indicated on the body, in a vertical down or horizontal pipeline. The Spirax Sarco 60311 strainer must be accessible for periodic removal of accumulated debris, by either blowing down or removal and cleaning of the screen.
Spirax Sarco 60311, IT Wye Strainer With #20 Mesh Standard 304 Stainless Steel Screen, 3/4 in, 4.6 in OAL, FNPT Connection, Graphite
CBPN:7573
MPN:60311
Price:
$63.91 / EA
DESCRIPTION
Spirax Sarco Wye Strainer, 3/4 in Nominal, 4.6 in Overall Length, FNPT, 1/2 in FNPT Blow-Off, Graphite Softgoods, Cast Iron Body
Rated up to 250 psi maximum saturated steam pressure, Spirax Sarco 60311 should be installed with the flow direction as indicated on the body, in a vertical down or horizontal pipeline. The Spirax Sarco 60311 strainer must be accessible for periodic removal of accumulated debris, by either blowing down or removal and cleaning of the screen.
Specifications
Brand: Spirax Sarco
Weight: 2.4 lbs
Nominal Size: 3/4 in
Body Material: Cast Iron
Connection Type: FNPT
Softgoods Material: Graphite
Overall Length: 4.6 in
Blow-Off Size: 1/2 in NPT
Manufacturer Name: Spirax-Sarco Inc
Series: IT Series
Standards and Approvals: ASTM A-126 Class B Body
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 250 psig
- Maximum allowable temperature: 406 deg F at 0 to 250 psig
- Maximum allowable pressure: 300 psig at -20 to 150 deg F
- 4.4 in inlet to outlet
- Vertical down or horizontal piping configuration
- Graphite cap gasket
