Spirax Sarco 4037290

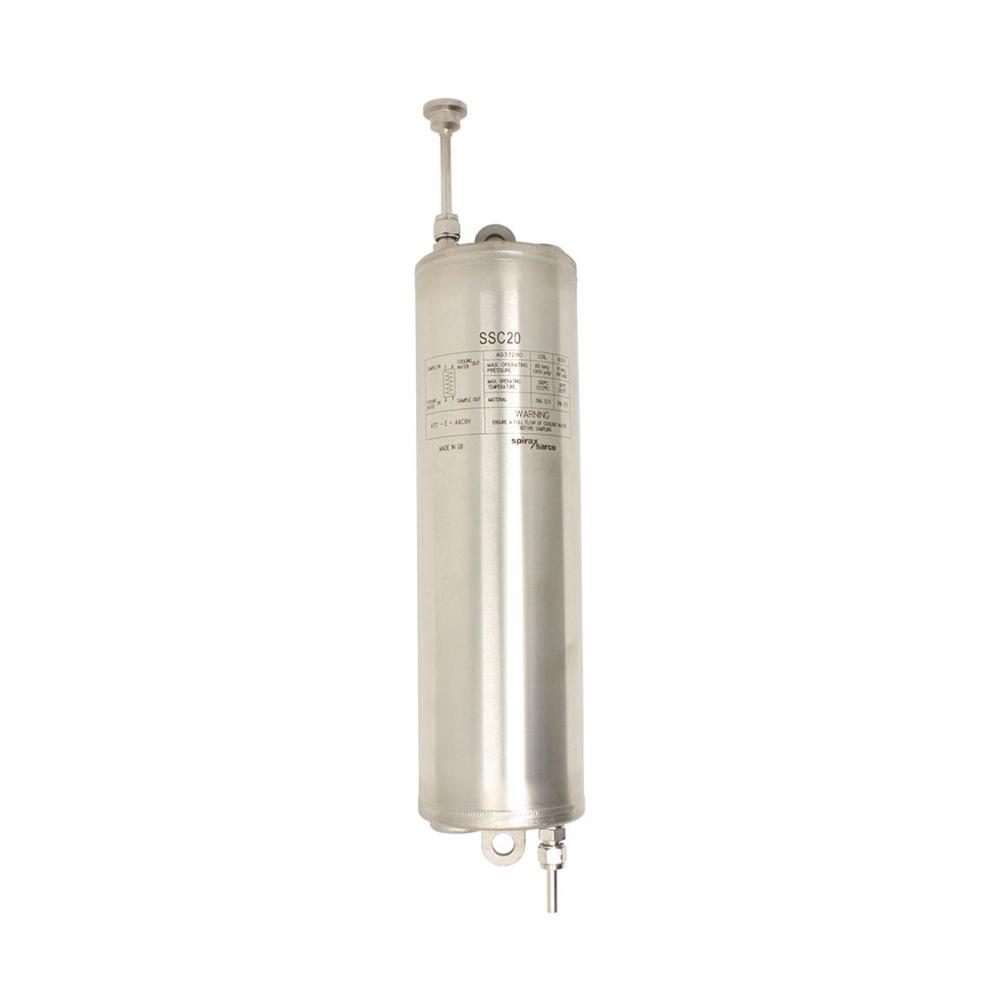

Spirax Sarco 4037290, SSC20 Sanitary Sample Cooler, 1/2 in Cold Water Inlet, Austenitic Stainless Steel

CBPN:115875

MPN:4037290

Price:
$5567.38 / EA

DESCRIPTION

Spirax Sarco Sanitary Sample Cooler, 1/2 in FNPT Cold Water Inlet, 1/2 Clamp Inlet & 6mm OD Tube Outlet Sample Tube Connections, Austenitic Stainless Steel, 17.7 in H

The Spirax Sarco SSC20 sanitary sample cooler has been specifically designed for taking high quality chemical, conductivity and microbiological samples quickly and safely from clean/pure steam, water for injection (WFI) and other high purity media systems. The unit consists of high quality 316L stainless steel components and utilizes a counter current flow to maximize cooler efficiency, resulting in a compact, space saving design.

Spirax Sarco 4037290, SSC20 Sanitary Sample Cooler, 1/2 in Cold Water Inlet, Austenitic Stainless Steel

CBPN:115875

MPN:4037290

Price:
$5567.38 / EA

Spirax Sarco logo

DESCRIPTION

Spirax Sarco Sanitary Sample Cooler, 1/2 in FNPT Cold Water Inlet, 1/2 Clamp Inlet & 6mm OD Tube Outlet Sample Tube Connections, Austenitic Stainless Steel, 17.7 in H

The Spirax Sarco SSC20 sanitary sample cooler has been specifically designed for taking high quality chemical, conductivity and microbiological samples quickly and safely from clean/pure steam, water for injection (WFI) and other high purity media systems. The unit consists of high quality 316L stainless steel components and utilizes a counter current flow to maximize cooler efficiency, resulting in a compact, space saving design.

Specifications

BrandSpirax Sarco
Weight7.5 lbs
MaterialAustenitic Stainless Steel
Cooling Water Connection1/2 in FNPT
Sample Tube Inlet Connection1/2 in Clamp
Sample Tube Outlet Connection6mm Tube
Dimensions17.7 in H
Manufacturer NameSpirax-Sarco Inc
SeriesSSC20
Country of OriginUS
Standards and ApprovalsASME BPE | EN 10204 3.1 | Grade 316L Body

Item Features

  • Internal surface finish of coil better than 20 u-in Ra (0.5 u-m Ra) to ensure high sterility
  • Coil manufactured from fully traceable 316L stainless steel
  • Self-draining design to eliminate sample retention
  • Fully sterilizable/autoclavable - to ensure integrity of unit between samples
  • Integral mounting bracket to facilitate simple installation
  • Austenitic stainless steel coil
  • 145 psig operating pressure
  • 212 deg F operating temperature
