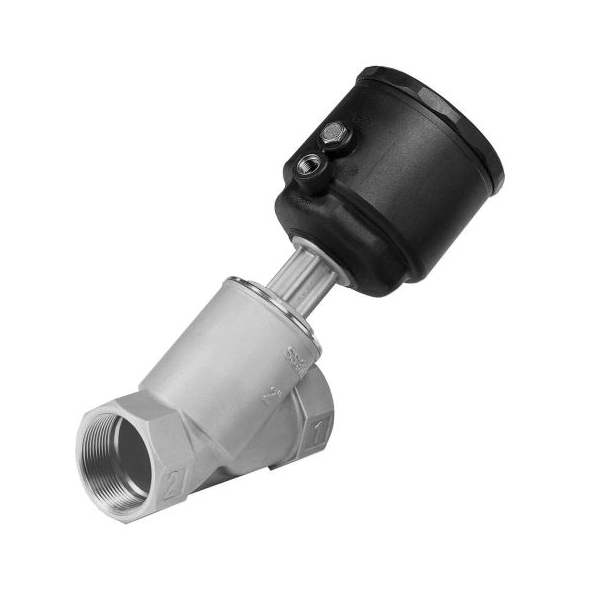

Spirax Sarco 3733066 PF5, PF51G-2NC 2-Port Fast Opening Piston Actuated On/Off Valve With 63 mm Dia Actuator, 1/2 in Nominal, NPT End Style, Bronze Body
CBPN:122482
MPN:3733066
DESCRIPTION
Spirax Sarco Piston Actuated On/Off Valve, 2-Port Fast Opening, Series: PF5, 1/2 in Nominal, NPT End Style, 9 bar Pressure, -10 to 180 deg C, Media: Air/Gas/Oil/Steam/Water, 65 mm Inlet to Outlet Length, 184 mm Top to Inlet Center, Bronze Body, 316 Stainless Steel Trim, FKM/PTFE Softgoods
A 2-port pneumatically actuated on/off bronze valve for use on water, air, oil and gases. It can also be used on lower specification steam applications. A pneumatic signal acts on the actuator piston to open or close the valve with a spring return action. The valve plugs have a PTFE soft seal (G) to provide a tight shut-off. A valve position indicator is included on standard and flow regulator models.
Spirax Sarco 3733066 PF5, PF51G-2NC 2-Port Fast Opening Piston Actuated On/Off Valve With 63 mm Dia Actuator, 1/2 in Nominal, NPT End Style, Bronze Body
CBPN:122482
MPN:3733066
DESCRIPTION
Spirax Sarco Piston Actuated On/Off Valve, 2-Port Fast Opening, Series: PF5, 1/2 in Nominal, NPT End Style, 9 bar Pressure, -10 to 180 deg C, Media: Air/Gas/Oil/Steam/Water, 65 mm Inlet to Outlet Length, 184 mm Top to Inlet Center, Bronze Body, 316 Stainless Steel Trim, FKM/PTFE Softgoods
A 2-port pneumatically actuated on/off bronze valve for use on water, air, oil and gases. It can also be used on lower specification steam applications. A pneumatic signal acts on the actuator piston to open or close the valve with a spring return action. The valve plugs have a PTFE soft seal (G) to provide a tight shut-off. A valve position indicator is included on standard and flow regulator models.
Specifications
Item Features
- These valves are designed for flow over the seat (port 1 to 2)
- Not recommended for water hammer prevention
- 316 stainless steel stem
- FKM O-ring/piston lip seal/stem O-ring
- PTFE gasket/plug seal/stem seal
