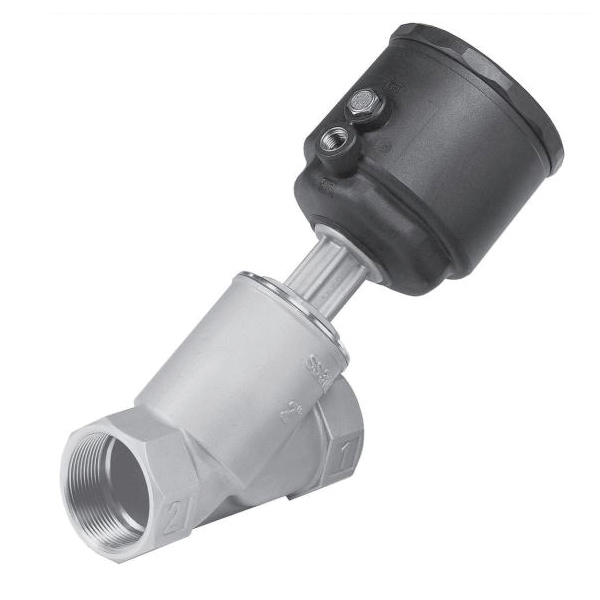

Spirax Sarco 3730173 PF6, PF61GH-3NC 2-Port Fast Opening High Temperature Piston Actuated On/Off Valve With 63 mm Dia Actuator, 1-1/4 in Nominal, NPT End Style, 316L Stainless Steel Body
CBPN:271149
MPN:3730173
DESCRIPTION
Spirax Sarco Piston Actuated On/Off Valve, 2-Port Fast Opening High Temperature, Series: PF6, 1-1/4 in Nominal, NPT End Style, 130 psig Pressure, 14 to 356 deg F, Media: Air/Gas/Oil/Steam, 4.33 in Inlet to Outlet Length, 7.6 in Top to Inlet Center, 316L Stainless Steel Body, 316 Stainless Steel Trim, FKM/PTFE Softgoods
A 2-port pneumatically actuated on/off bronze valve for use on water, air, oil and gases. It can also be used on lower specification steam applications. A pneumatic signal acts on the actuator piston to open or close the valve with a spring return action. The valve plugs have a PTFE soft seal (G) to provide a tight shut-off. A valve position indicator is included on standard and flow regulator models.
Spirax Sarco 3730173 PF6, PF61GH-3NC 2-Port Fast Opening High Temperature Piston Actuated On/Off Valve With 63 mm Dia Actuator, 1-1/4 in Nominal, NPT End Style, 316L Stainless Steel Body
CBPN:271149
MPN:3730173
DESCRIPTION
Spirax Sarco Piston Actuated On/Off Valve, 2-Port Fast Opening High Temperature, Series: PF6, 1-1/4 in Nominal, NPT End Style, 130 psig Pressure, 14 to 356 deg F, Media: Air/Gas/Oil/Steam, 4.33 in Inlet to Outlet Length, 7.6 in Top to Inlet Center, 316L Stainless Steel Body, 316 Stainless Steel Trim, FKM/PTFE Softgoods
A 2-port pneumatically actuated on/off bronze valve for use on water, air, oil and gases. It can also be used on lower specification steam applications. A pneumatic signal acts on the actuator piston to open or close the valve with a spring return action. The valve plugs have a PTFE soft seal (G) to provide a tight shut-off. A valve position indicator is included on standard and flow regulator models.
Specifications
Item Features
- These valves are designed for flow over the seat (port 1 to 2)
- Not recommended for water applications
- 316 stainless steel stem
- FKM O-ring/piston lip seal/stem O-ring
- PTFE gasket/plug seal/stem seal
