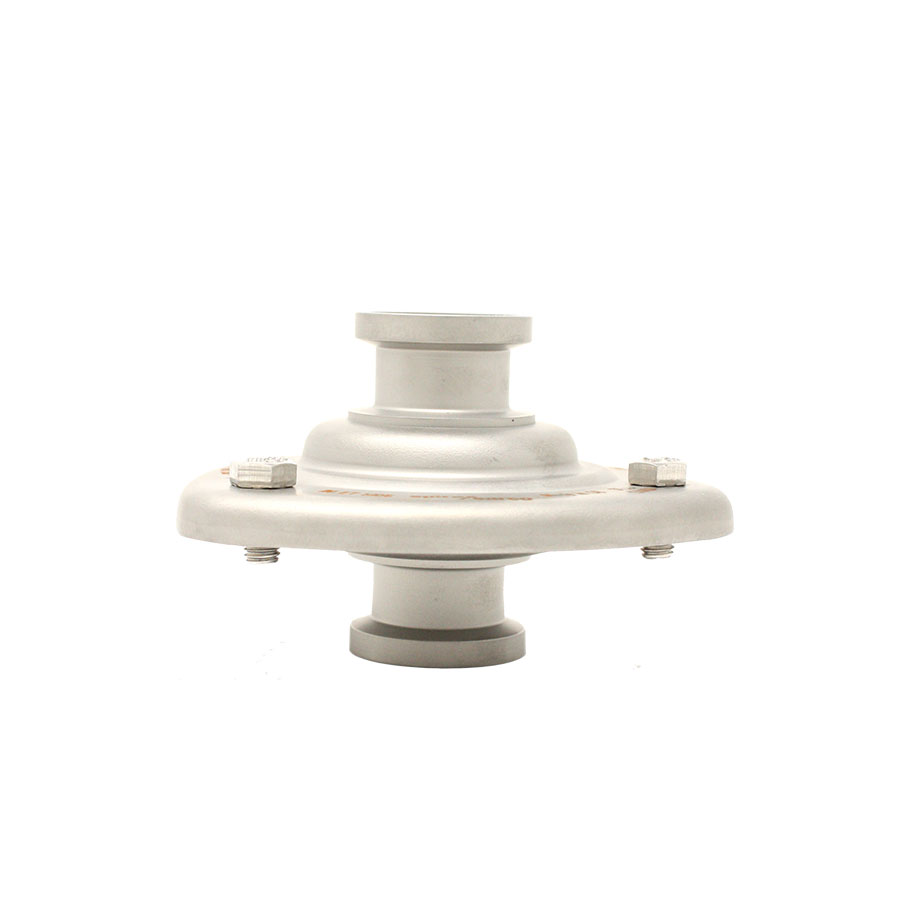

![Spirax Sarco BTM7 Balanced Pressure Thermostatic Steam Trap](/userfiles/ad/medium/spirax-sarco-1802760-nobkgd_1159.jpg)
Spirax Sarco 1802860, BTM7 Balanced Pressure Thermostatic Clean Steam Trap, 1 in, Sanitary Clamp, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel
CBPN:50577
MPN:1802860
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 1 in Nominal, Sanitary Clamp, 102 psig Operating, 316L Stainless Steel, 32 to 338 deg F Operating, 2.1 in H
The Spirax Sarco BTM7 is a maintainable thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.
Spirax Sarco 1802860, BTM7 Balanced Pressure Thermostatic Clean Steam Trap, 1 in, Sanitary Clamp, 32 to 338 deg F Operating, 102 psig Operating, 316L Stainless Steel
CBPN:50577
MPN:1802860
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Clean Steam Trap, 1 in Nominal, Sanitary Clamp, 102 psig Operating, 316L Stainless Steel, 32 to 338 deg F Operating, 2.1 in H
The Spirax Sarco BTM7 is a maintainable thermostatic steam trap designed to remove condensate from clean steam systems with minimal backing up. Applications include sterile steam barriers, process vessels and CIP/SIP systems. Manufactured in 316L stainless steel with minimal crevises, it is self-draining and operates close to steam temperature. Traps are individually packaged with protective end caps and sealed in a polythene bag.
Specifications
Item Features
- Maximum allowable pressure: 102 psig at 338 deg F
- Maximum allowable temperature: 338 deg F at 102 psig
- Minimum allowable temperature: 14 deg F
- Designed for a maximum cold hydraulic test pressure of 155 psig
- Sanitary clamp compatible hygienic connection
- Vertical installation
