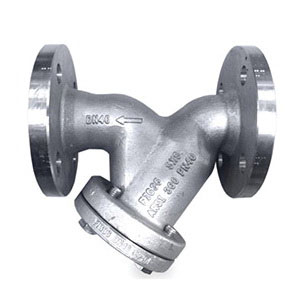

Spirax Sarco 1607294 FIG 36 Wye Strainer With 1/32 Perforated Screen, 1 in Nominal, 6 in OAL, ANSI 150 Flanged Connection, Graphite Softgoods
CBPN:112125
MPN:1607294
DESCRIPTION
Spirax Sarco Wye Strainer, 1 in Nominal, 6 in Overall Length, ANSI 150 Flanged, 1/2 in Blow-Off, Graphite, Austenitic Stainless Steel Body
The Fig 36 is an austenitic stainless steel integrally flanged Y-type strainer. The standard stainless steel screen in the 1/2 in to 3 in size range has 1/32 in (0.8 mm) perforations, in the 4 in to 8 in size range it has 1/16 in (1.6 mm) perforations. Other perforations, mesh sizes and Monel screens are available as options. The strainer cap can be drilled and tapped for blowdown and drain valves if required.
Spirax Sarco 1607294 FIG 36 Wye Strainer With 1/32 Perforated Screen, 1 in Nominal, 6 in OAL, ANSI 150 Flanged Connection, Graphite Softgoods
CBPN:112125
MPN:1607294
DESCRIPTION
Spirax Sarco Wye Strainer, 1 in Nominal, 6 in Overall Length, ANSI 150 Flanged, 1/2 in Blow-Off, Graphite, Austenitic Stainless Steel Body
The Fig 36 is an austenitic stainless steel integrally flanged Y-type strainer. The standard stainless steel screen in the 1/2 in to 3 in size range has 1/32 in (0.8 mm) perforations, in the 4 in to 8 in size range it has 1/16 in (1.6 mm) perforations. Other perforations, mesh sizes and Monel screens are available as options. The strainer cap can be drilled and tapped for blowdown and drain valves if required.
Specifications
Item Features
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum operating pressure: 232 psig
- Maximum allowable temperature: 842 deg F at 305 psig
- Austenitic stainless steel screen
- ANSI 300 body design condition
- Reinforced exfoliated graphite cap gasket
