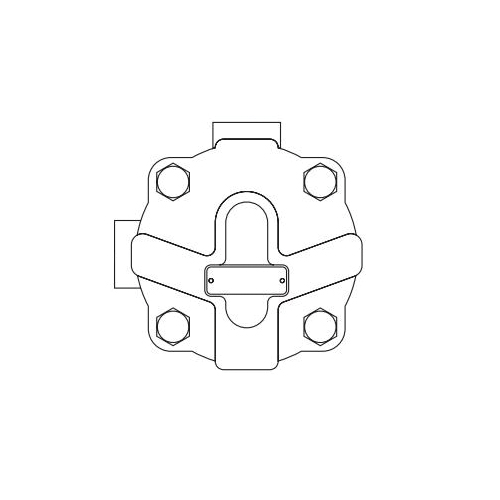

Spirax Sarco 1488090 CA14 Liquid Drain Trap, 1/2 in Nominal, NPT End Style, 0 to 250 deg C, 203 psig Pressure, SG Iron
CBPN:41027
MPN:1488090
Price:
$602.42 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Series: CA14, 1/2 in Nominal, NPT End Style, 114 mm Length, 203 psig Pressure, SG Iron, 0 to 250 deg C, 147 mm W x 114 mm H Dimensions
The CA14 is a range of float type automatic Liquid Drainers for air and gas systems. The body and cover are of SG iron and the complete unit is readily maintainable. The standard version with a FKM valve cone is designated CA14. A stainless steel valve cone version is designated CA14S.
Spirax Sarco 1488090 CA14 Liquid Drain Trap, 1/2 in Nominal, NPT End Style, 0 to 250 deg C, 203 psig Pressure, SG Iron
CBPN:41027
MPN:1488090
Price:
$602.42 / EA
DESCRIPTION
Spirax Sarco Liquid Drain Trap, Series: CA14, 1/2 in Nominal, NPT End Style, 114 mm Length, 203 psig Pressure, SG Iron, 0 to 250 deg C, 147 mm W x 114 mm H Dimensions
The CA14 is a range of float type automatic Liquid Drainers for air and gas systems. The body and cover are of SG iron and the complete unit is readily maintainable. The standard version with a FKM valve cone is designated CA14. A stainless steel valve cone version is designated CA14S.
Specifications
Brand: Spirax Sarco
Weight: 5.5 lbs
Nominal Size: 1/2 in
End Style: NPT
Length: 114 mm
Pressure Rating: 203 psig
Material: SG Iron
Dimensions: 147 mm W x 114 mm H
Manufacturer Name: Spirax-Sarco Inc
Series: CA14
Temperature Rating: 0 to 250 deg C
Standards and Approvals: EN 10204 2.2 | EN-GJS 400-15 | European Pressure Equipment Directive
Item Features
- Improve operational efficiency
- Precise control
