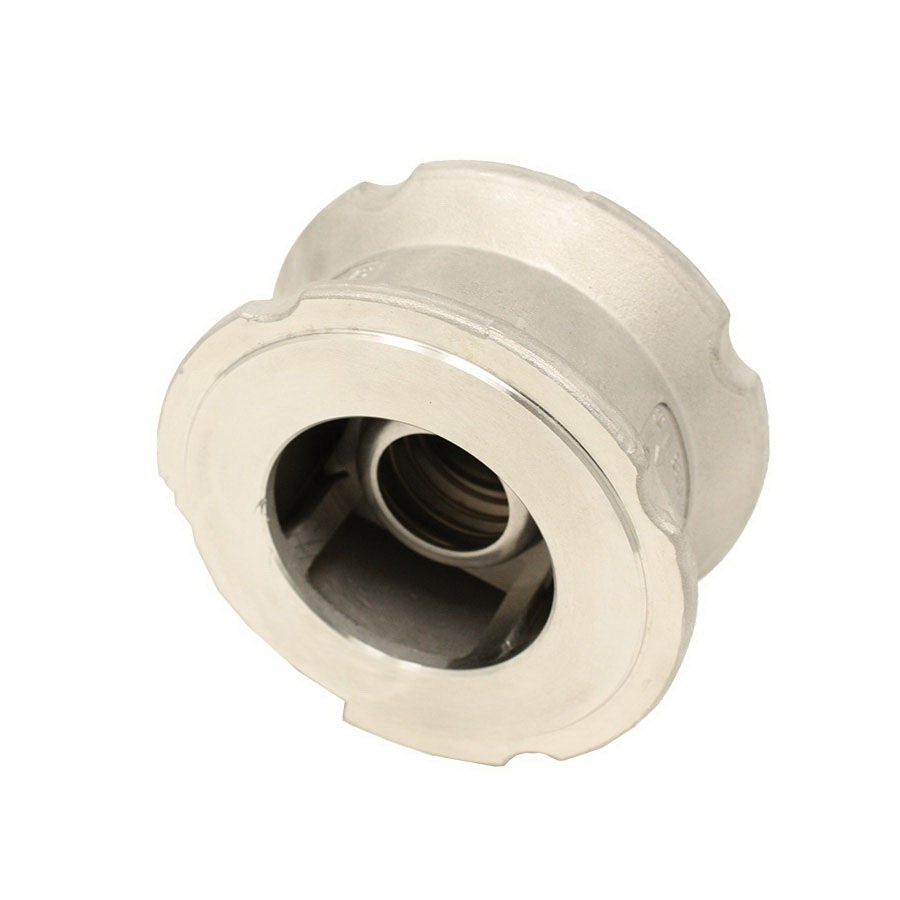

Spirax Sarco 1348300, DCV 4 Wafer Check Valve With Standard Stainless Steel Spring, 1-1/2 in, Austenitic Stainless Steel Body
CBPN:24843
MPN:1348300
Price:
$960.96 / EA
DESCRIPTION
Spirax Sarco Check Valve, Wafer, 1-1/2 in Nominal, 725 psig, 572 deg F, Media: Steam/Water, 3.8 in Inlet to Outlet Length, Austenitic Stainless Steel Body, Metal Seat Trim
The DCV 4 Wafer Check Valve is designed to be fitted between ANSI flanges. It is suitable for use on a wide range of fluids for applications in process lines, hot water systems, steam and condensate systems.
Spirax Sarco 1348300, DCV 4 Wafer Check Valve With Standard Stainless Steel Spring, 1-1/2 in, Austenitic Stainless Steel Body
CBPN:24843
MPN:1348300
Price:
$960.96 / EA
DESCRIPTION
Spirax Sarco Check Valve, Wafer, 1-1/2 in Nominal, 725 psig, 572 deg F, Media: Steam/Water, 3.8 in Inlet to Outlet Length, Austenitic Stainless Steel Body, Metal Seat Trim
The DCV 4 Wafer Check Valve is designed to be fitted between ANSI flanges. It is suitable for use on a wide range of fluids for applications in process lines, hot water systems, steam and condensate systems.
Specifications
Brand: Spirax Sarco
Weight: 2.5 lbs
Nominal Size: 1-1/2 in
Body Material: Austenitic Stainless Steel
Inlet to Outlet Length: 3.8 in
Manufacturer Name: Spirax-Sarco Inc
Media: Steam/Water
Pressure Rating: 725 psig
Series: DCV4
Temperature Rating: 572 deg F
Trim Material: Metal Seat
Type: Wafer
Standards and Approvals: ASTM A351 CF3M Body
Item Features
- ANSI 300 body design condition
- Maximum cold hydraulic test pressure: 1102 psig
- -58 deg F minimum temperature
- Effective minimal maintenance free solutions
- Preventing reverse flow in pipelines
- Compact design
