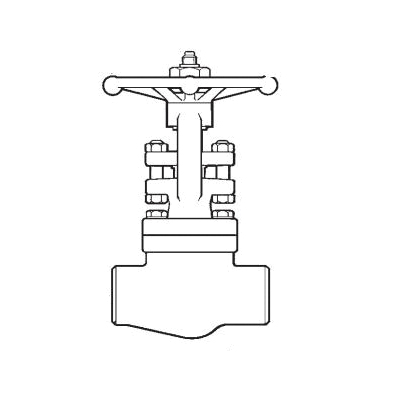

Spirax Sarco 1326195 Bellows Sealed Stop Valve, 3/4 in Nominal, Socket Welded End Style, 800 lb, Forged Steel Body
CBPN:239739
MPN:1326195
Price:
$445.90 / EA
DESCRIPTION
Spirax Sarco Stop Valve, Bellows Sealed, 3/4 in Nominal, Socket Welded End Style, 800 lb Pressure Class, Media: Gas/Steam/Water, Handwheel Actuator, 3.54 in Inlet to Outlet Length, 5.67 in Top to Inlet Center, Forged Steel Body, Stainless Steel Trim
The A3S is a Class 800 bellows sealed isolation valve used on steam, gas, liquid, condensate, and water systems. The metallic bellows replaces conventional stem packing and acts as an impervious barrier between the fluid and environment. This design guarantees zero emissions from the stem seal.
Spirax Sarco 1326195 Bellows Sealed Stop Valve, 3/4 in Nominal, Socket Welded End Style, 800 lb, Forged Steel Body
CBPN:239739
MPN:1326195
Price:
$445.90 / EA
DESCRIPTION
Spirax Sarco Stop Valve, Bellows Sealed, 3/4 in Nominal, Socket Welded End Style, 800 lb Pressure Class, Media: Gas/Steam/Water, Handwheel Actuator, 3.54 in Inlet to Outlet Length, 5.67 in Top to Inlet Center, Forged Steel Body, Stainless Steel Trim
The A3S is a Class 800 bellows sealed isolation valve used on steam, gas, liquid, condensate, and water systems. The metallic bellows replaces conventional stem packing and acts as an impervious barrier between the fluid and environment. This design guarantees zero emissions from the stem seal.
Specifications
Brand: Spirax Sarco
Weight: 5.1 lbs
Nominal Size: 3/4 in
End Style: Socket Welded
Pressure Class: 800 lb
Body Material: Forged Steel
Actuator Type: Handwheel
Inlet to Outlet Length: 3.54 in
Manufacturer Name: Spirax-Sarco Inc
Media: Gas/Steam/Water
Top to Inlet Center: 5.67 in
Trim Material: Stainless Steel
Type: Bellows Sealed
Standards and Approvals: API 598 | ASTM A105 Body | ASTM A276 Type 410 Stem | BS 5352 | EN 10204 (3.1.B) | DIN 3230 rate B01
Item Features
- ANSI 800 class body design condition
- Maximum hydraulic test pressure: 2175 psig
- Maximum design temperature: 797 deg F
- 3.7 Cv
- Spindle vertical flow installation
- Stainless steel disc
