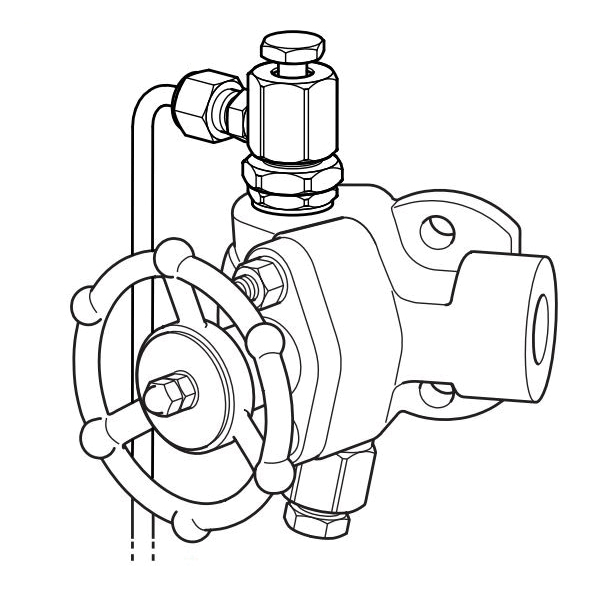

Spirax Sarco 1286462 PC3001 Pipeline Connector, 3/4 in Nominal, NPT Connection, 304/304L Stainless Steel, With Upstream Trap Vent Valve, Piston Isolation Valve, & Line Drainage Valve
CBPN:271248
MPN:1286462
Price:
$1274.00 / EA
DESCRIPTION
Spirax Sarco Pipeline Connector, Series: PC3001, 3/4 in Nominal, NPT Connection, 899 psig Pressure, -51 to 797 deg F, Right to Left Flow Direction, Upstream Trap, 2 Bolts, 304/304L Stainless Steel
The PC3001, PC3000 and PC30 range of Pipeline Connectors are designed for use with two bolt universal swivel connector steam traps. Incorporating one integral piston stop valve, it is possible to isolate upstream of the Steam Trap.
Spirax Sarco 1286462 PC3001 Pipeline Connector, 3/4 in Nominal, NPT Connection, 304/304L Stainless Steel, With Upstream Trap Vent Valve, Piston Isolation Valve, & Line Drainage Valve
CBPN:271248
MPN:1286462
Price:
$1274.00 / EA
DESCRIPTION
Spirax Sarco Pipeline Connector, Series: PC3001, 3/4 in Nominal, NPT Connection, 899 psig Pressure, -51 to 797 deg F, Right to Left Flow Direction, Upstream Trap, 2 Bolts, 304/304L Stainless Steel
The PC3001, PC3000 and PC30 range of Pipeline Connectors are designed for use with two bolt universal swivel connector steam traps. Incorporating one integral piston stop valve, it is possible to isolate upstream of the Steam Trap.
Specifications
Brand: Spirax Sarco
Weight: 7.9 lbs
Nominal Size: 3/4 in
Connection Type: NPT
Pressure Rating: 899 psig
Material: 304/304L Stainless Steel
Flow Direction: Right to Left
Manufacturer Name: Spirax-Sarco Inc
Number of Bolts: 2
Series: PC3001
Temperature Rating: -51 to 797 deg F
Trap Type: Upstream
Application: For two bolt universal swivel connector steam traps
Standards and Approvals: ASME B16.11/Class 3000 | ASTM A182F | EN 10204 3.1 | European Pressure Equipment Directive
Item Features
- Achieve energy savings
- Quick and easy installation
