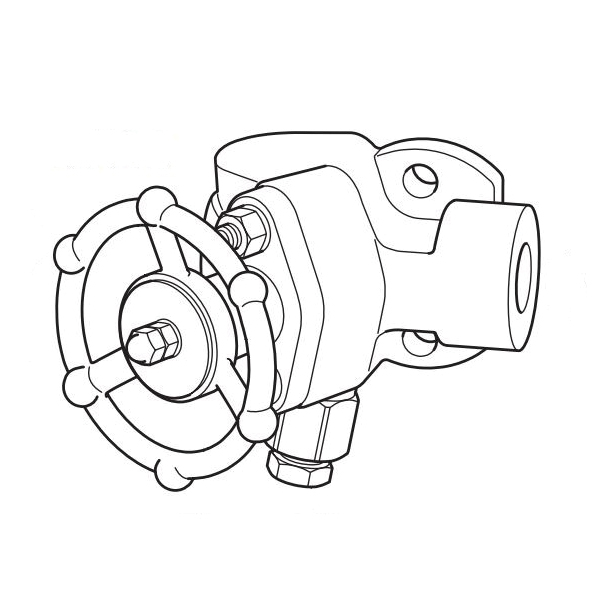

![Spirax Sarco PC3000 Pipeline Connector Drawing](/userfiles/ad/medium/Spirax_Sarco_1286392.jpg)
Spirax Sarco 1286396 PC3000 Pipeline Connector, 1/2 in Nominal, Socket Weld Connection, 304/304L Stainless Steel, With Upstream Trap Vent Valve, & Piston Isolation Valve
CBPN:271247
MPN:1286396
Price:
$743.00 / EA
DESCRIPTION
Spirax Sarco Pipeline Connector, Series: PC3000, 1/2 in Nominal, Socket Weld Connection, 899 psig Pressure, -51 to 797 deg F, Left to Right Flow Direction, Upstream Trap, 2 Bolts, 304/304L Stainless Steel
The PC3001, PC3000 and PC30 range of Pipeline Connectors are designed for use with two bolt universal swivel connector steam traps. Incorporating one integral piston stop valve, it is possible to isolate upstream of the Steam Trap.
Spirax Sarco 1286396 PC3000 Pipeline Connector, 1/2 in Nominal, Socket Weld Connection, 304/304L Stainless Steel, With Upstream Trap Vent Valve, & Piston Isolation Valve
CBPN:271247
MPN:1286396
Price:
$743.00 / EA
DESCRIPTION
Spirax Sarco Pipeline Connector, Series: PC3000, 1/2 in Nominal, Socket Weld Connection, 899 psig Pressure, -51 to 797 deg F, Left to Right Flow Direction, Upstream Trap, 2 Bolts, 304/304L Stainless Steel
The PC3001, PC3000 and PC30 range of Pipeline Connectors are designed for use with two bolt universal swivel connector steam traps. Incorporating one integral piston stop valve, it is possible to isolate upstream of the Steam Trap.
Specifications
Brand: Spirax Sarco
Weight: 7.9 lbs
Nominal Size: 1/2 in
Connection Type: Socket Weld
Pressure Rating: 899 psig
Material: 304/304L Stainless Steel
Flow Direction: Left to Right
Manufacturer Name: Spirax-Sarco Inc
Number of Bolts: 2
Series: PC3000
Temperature Rating: -51 to 797 deg F
Trap Type: Upstream
Application: For two bolt universal swivel connector steam traps
Standards and Approvals: ASME B16.11/Class 3000 | ASTM A182F | EN 10204 3.1 | European Pressure Equipment Directive
Item Features
- For use on lines up to 800 deg F
- Fully shrouded piston valve stem reducing potential of corrosion
- Strainer fitted as standard protects steam trap from debris entrained in the condensate
