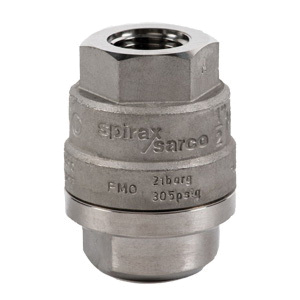

Spirax Sarco 1251790, MST21 Balanced Pressure Thermostatic Steam Trap With NTS (Near to Steam) Capsule, 1/2 in, FNPT, 518 deg F Operating, 304 psig Operating, Stainless Steel
CBPN:95315
MPN:1251790
Price:
$550.55 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, 1/2 in Nominal, NPT, 304 psig Operating, Stainless Steel, 518 deg F Operating, 2.4 in H
Spirax Sarco 1251790, MST21 Balanced Pressure Thermostatic Steam Trap With NTS (Near to Steam) Capsule, 1/2 in, FNPT, 518 deg F Operating, 304 psig Operating, Stainless Steel
CBPN:95315
MPN:1251790
Price:
$550.55 / EA
DESCRIPTION
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, 1/2 in Nominal, NPT, 304 psig Operating, Stainless Steel, 518 deg F Operating, 2.4 in H
Specifications
Brand: Spirax Sarco
Weight: 1.1 lbs
Nominal Size: 1/2 in
End Style: FNPT
Max Operating Pressure: 304 psig
Max Allowable Pressure: 362 psig/up to 248 deg F
Max Allowable Temperature: 752 deg F/up to 188 psig
Material: Stainless Steel
Dimensions: 2.4 in H
Manufacturer Name: Spirax-Sarco Inc
Series: MST21
Application: Steam main drainage and steam tracing
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A743 CF16F Body
Item Features
- Maximum allowable temperature: 752 deg F at 0 to 188 psig
- Maximum allowable pressure: 362 psig at up to 248 deg F
- Maximum operating temperature: 518 deg F at 300 psig
- Repairable trap NTS capsule near to Steam
- Adjust automatically to varying steam pressures
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
