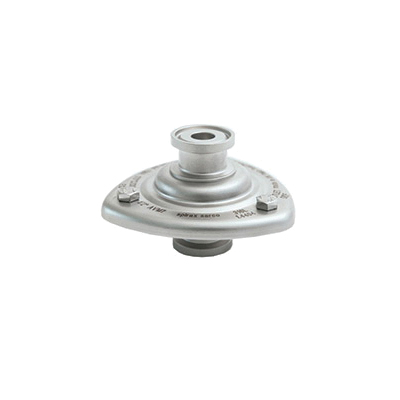

Spirax Sarco Tri-Clamp® 1232260 AVM7 Balanced Pressure Thermostatic Air Vent, 1 in Sanitary Clamp Connection, 102 psig Pressure, 316L Stainless Steel
CBPN:175629
MPN:1232260
Price:
$1427.79 / EA
DESCRIPTION
Spirax Sarco Tri-Clamp® Thermostatic Air Vent, Balanced Pressure, 1 in Sanitary Clamp, 102 psig, 316L Stainless Steel, 1.85 in H
The AVM7 (maintainable) is a vertical body thermostatic air vent, with all AISI 316L construction designed for use in clean steam systems. Normal operation is close to saturated steam temperature.
Specifications
Brand: Spirax Sarco
Weight: 2 lbs
Connection Type: 1 in Sanitary Clamp
Pressure Rating: 102 psig
Material: 316L Stainless Steel
Dimensions: 1.85 in H
Manufacturer Name: Spirax-Sarco Inc
Type: Balanced Pressure
Application: Fermenter sterilization, Steam barriers (Block and bleed systems), Sterilizer drainage and air venting, Cip/Sip system condensate drainage and sterilization of process vessels and Pipes
Country of Origin: US
Standards and Approvals: AISI 316L (1.4404) Body | ASME BPE | EN 10204 3.1 | FDA 21CFR 177.2600 | ISO 6552 | USP Class VI
Item Features
- For clean steam
- Saturated steam temperature
- Maximum allowable pressure: 145 psig at 0 to 302 deg F
- Maximum allowable temperature: 338 deg F at 0 to 132 psig
- Maximum cold hydraulic test pressure: 155 psig
- Complies with the requirements of the European Pressure Equipment Directive
- FKM o-ring
- Vertical installation
