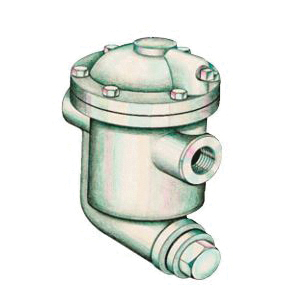

Spirax Sarco 0720290, HM34/7 Inverted Bucket Steam Trap With Integral Strainer, 1/2 in, NPT, 572 deg F, 120 psig, Carbon Steel
CBPN:222280
MPN:0720290
Price:
$1383.20 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, 1/2 in Nominal, NPT, 210 mm Length, 120 psig, Carbon Steel, 572 deg F
The HM34 is an inverted bucket steam trap manufactured in carbon steel with an internal strainer fitted as standard. It is designed for use on horizontal installations and will operate on steam pressures up to 32 barg.
Spirax Sarco 0720290, HM34/7 Inverted Bucket Steam Trap With Integral Strainer, 1/2 in, NPT, 572 deg F, 120 psig, Carbon Steel
CBPN:222280
MPN:0720290
Price:
$1383.20 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, 1/2 in Nominal, NPT, 210 mm Length, 120 psig, Carbon Steel, 572 deg F
The HM34 is an inverted bucket steam trap manufactured in carbon steel with an internal strainer fitted as standard. It is designed for use on horizontal installations and will operate on steam pressures up to 32 barg.
Specifications
Brand: Spirax Sarco
Weight: 6 lbs
Nominal Size: 1/2 in
End Style: FNPT
Material: Carbon Steel
Max Operating Pressure: 120 psig
Max Allowable Pressure: 580 psig/up to 248 deg F
Max Allowable Temperature: 572 deg F/up to 406 psig
Length: 210 mm
Manufacturer Name: Spirax-Sarco Inc
Series: HM34
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI 300 and EN 1092 PN40 | EN 10204 2.2 | European Pressure Equipment Directive 97/23/EC | 1.0619 +N Body
Item Features
- PN40 body design conditions
- Maximum allowable pressure: 580 psig up to 248 deg F
- Maximum allowable temperature: 572 deg F at 0 to 406 psig
- In-line horizontal piping configuration
- Maximum cold hydraulic test pressure: 60 barg
- Disposal: The product is recyclable, no ecological hazard is anticipated with disposal of this product, providing due care is taken
