Spirax Sarco 0671399, 212/16 Inverted Bucket Steam Trap With Stainless Steel Bucket and Bottom Inlet Top - Top Outlet, 3/4 in, FNPT, 210 deg C, 30 psig, Cast Iron
CBPN:181275
MPN:0671399
Price:
$1400.49 / EA
DESCRIPTION

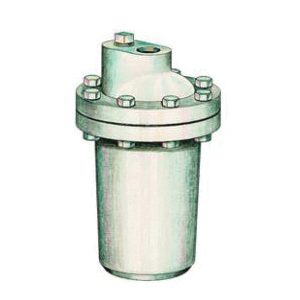

Spirax Sarco Inverted Bucket Steam Trap, 3/4 in Nominal Size, FNPT, 200 mm Length, 30 psig, Cast Iron, 210 deg C, 135 mm W
The Spirax Sarco 200 Series of inverted bucket steam traps are designed for installation in vertical pipework. With cast iron bodies and bolted cover they are maintainable and offer a very wide range of capacities, in applications up to 17 barg.
Spirax Sarco 0671399, 212/16 Inverted Bucket Steam Trap With Stainless Steel Bucket and Bottom Inlet Top - Top Outlet, 3/4 in, FNPT, 210 deg C, 30 psig, Cast Iron
CBPN:181275
MPN:0671399
Price:
$1400.49 / EA
DESCRIPTION
Spirax Sarco Inverted Bucket Steam Trap, 3/4 in Nominal Size, FNPT, 200 mm Length, 30 psig, Cast Iron, 210 deg C, 135 mm W
The Spirax Sarco 200 Series of inverted bucket steam traps are designed for installation in vertical pipework. With cast iron bodies and bolted cover they are maintainable and offer a very wide range of capacities, in applications up to 17 barg.
Specifications
Brand: Spirax Sarco
Weight: 11.5 lbs
Nominal Size: 3/4 in
End Style: FNPT
Material: Cast Iron
Max Operating Pressure: 30 psig
Max Allowable Pressure: 319 psig/up to 410 deg F
Max Allowable Temperature: 410 deg F/up to 319 psig
Dimensions: 135 mm W
Length: 200 mm
Manufacturer Name: Spirax-Sarco Inc
Item Features
- Note: maximum operating conditions depend on the orifice size
- PN16 body design conditions
- Maximum operating pressure: 22 barg at 210 deg C
- Maximum cold hydraulic test pressure: 34 barg
- Disposal: The product is recyclable, no ecological hazard is anticipated with disposal of this product, providing due care is taken
- In-line vertical piping configuration
- Steel internal tube
