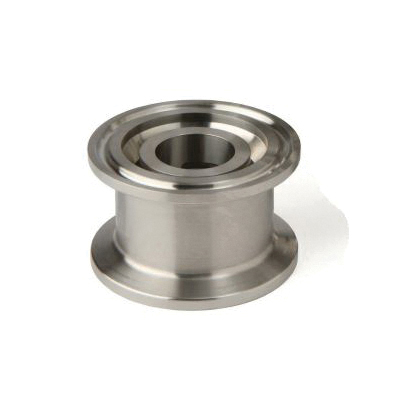

Spirax Sarco 0295600, CVS10 Sanitary Check Valve With Metal Seat, 1-1/2 in, Tri-Clamp, ASME BPE 20 RA, 145 psig
CBPN:208038
MPN:0295600
Price:
$1721.72 / EA
DESCRIPTION
Spirax Sarco Sanitary Check Valve, 1-1/2 in Nominal, Tri-Clamp, 145 psig, Media: Steam, 316L Stainless Steel Body, 428 deg F, 2 in L x 1.18 in H
The CVS10 sanitary in-line spring assisted check valve is manufactured from 316L stainless steel and prevents reverse flow in fluid lines. The CVS10 with metal seat is designed for steam applications or other aggressive applications where a soft seat is not suitable, within the food, medical and pharmaceutical industries.
Spirax Sarco 0295600, CVS10 Sanitary Check Valve With Metal Seat, 1-1/2 in, Tri-Clamp, ASME BPE 20 RA, 145 psig
CBPN:208038
MPN:0295600
Price:
$1721.72 / EA
DESCRIPTION
Spirax Sarco Sanitary Check Valve, 1-1/2 in Nominal, Tri-Clamp, 145 psig, Media: Steam, 316L Stainless Steel Body, 428 deg F, 2 in L x 1.18 in H
The CVS10 sanitary in-line spring assisted check valve is manufactured from 316L stainless steel and prevents reverse flow in fluid lines. The CVS10 with metal seat is designed for steam applications or other aggressive applications where a soft seat is not suitable, within the food, medical and pharmaceutical industries.
Specifications
Brand: Spirax Sarco
Weight: 1 lbs
Nominal Size: 1-1/2 in
End Style: Sanitary Tri-Clamp
Pressure Rating: 145 psig
Body Material: 316L Stainless Steel
Dimensions: 2 in L x 1.18 in H
Manufacturer Name: Spirax-Sarco Inc
Media: Steam
Series: CVS10
Temperature Rating: 428 deg F
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASME BPE 20 Ra | European Pressure Equipment Directive 97/23/EC | EN 10204 3.1 | EN 12266-1: 2003 Rate D
Item Features
- Internal surface finish of 20 u-in Ra and external surface finish of 32 u-in Ra
- Maximum allowable pressure: 157 psig at 392 deg F
- Maximum allowable/operating temperature: 428 deg F at 152 psig
- Minimum allowable temperature: -425 deg F
- 145 psig maximum operating pressure for saturated steam service
- Maximum cold hydraulic test pressure: 218 psig
- 8 Kv
- Differential pressure with zero flow in a horizontal installation
