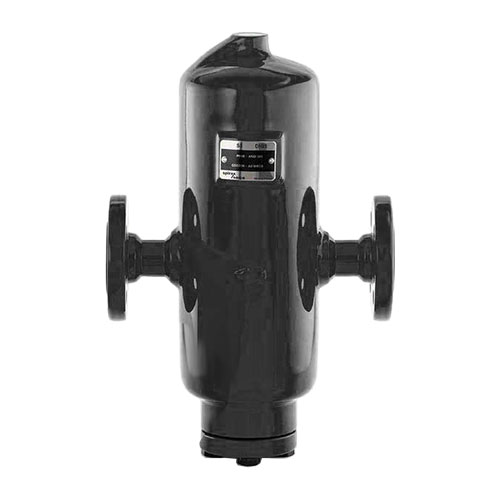

Spirax Sarco 0239092, S5 Separator, 1/2 in, ANSI 150 Flanged, 218 psig Operating
CBPN:222229
MPN:0239092
Price:
$2000.18 / EA
DESCRIPTION
Spirax Sarco Separator, 1/2 in Nominal, ANSI 150 Flanged, 218 psig Operating, 2.7 in Drain, 32 to 797 deg F Operating, Carbon Steel Body, 8 in L x 11.6 in H
The S5 is a carbon steel baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.
Spirax Sarco 0239092, S5 Separator, 1/2 in, ANSI 150 Flanged, 218 psig Operating
CBPN:222229
MPN:0239092
Price:
$2000.18 / EA
DESCRIPTION
Spirax Sarco Separator, 1/2 in Nominal, ANSI 150 Flanged, 218 psig Operating, 2.7 in Drain, 32 to 797 deg F Operating, Carbon Steel Body, 8 in L x 11.6 in H
The S5 is a carbon steel baffle type separator used for the removal of entrained liquids in steam, compressed air and gas systems.
Specifications
Brand: Spirax Sarco
Weight: 10 lbs
Nominal Size: 1/2 in
End Style: ANSI 150 Flanged
Pressure Rating: 218 psig Operating
Body Material: Carbon Steel
Dimensions: 8 in L x 11.6 in H
Drain Connection: 2.7 in
Manufacturer Name: Spirax-Sarco Inc
Series: S5
Temperature Rating: 32 to 797 deg F Operating
Country of Origin: US
Standards and Approvals: ASTM A216 WCB Body | European Pressure Equipment Directive 97/23/EC
Item Features
- 725 psig at 122 deg F maximum allowable pressure
- 797 deg F at 406 psig maximum allowable temperature
- 1111 psig maximum cold hydraulic test pressure
- Reduce wet steam
- Maintain heat transfer efficiency
- Reduce erosion and corrosion in your steam system
- Reduce pipework and heating surface scaling
