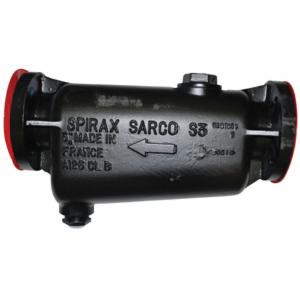

Spirax Sarco 0231565, S3 Separator, 8 in, ANSI 150 Flange, 145 psig
CBPN:174481
MPN:0231565
Price:
$13661.83 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Separator, 8 in Nominal, ANSI 150 Flange, 145 psig, 363 deg F, Ductile Iron Body
Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.
Spirax Sarco 0231565, S3 Separator, 8 in, ANSI 150 Flange, 145 psig
CBPN:174481
MPN:0231565
Price:
$13661.83 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Spirax Sarco Separator, 8 in Nominal, ANSI 150 Flange, 145 psig, 363 deg F, Ductile Iron Body
Moisture Separators are used to improve the quality of steam or compressed air either within the distribution system or on the supply inlet to equipment. Removal of moisture is by a series of baffles on which the suspended water droplets impinge and fall out by gravity to the drain, which must be piped to a trap.
Specifications
Brand: Spirax Sarco
Weight: 419 lbs
Nominal Size: 8 in
End Style: ANSI 150 Flange
Pressure Rating: 145 psig
Body Material: Ductile Iron
Manufacturer Name: Spirax-Sarco Inc
Series: S3
Temperature Rating: 363 deg F
Domestic/Import: Domestic
Country of Origin: US
Item Features
- Maximum allowable pressure: 188 psig at 428 deg F and 232 psig at 0 to 248 deg F
- Maximum allowable temperature: 428 dge F at 0 to 188 psig
- Horizontal installation
