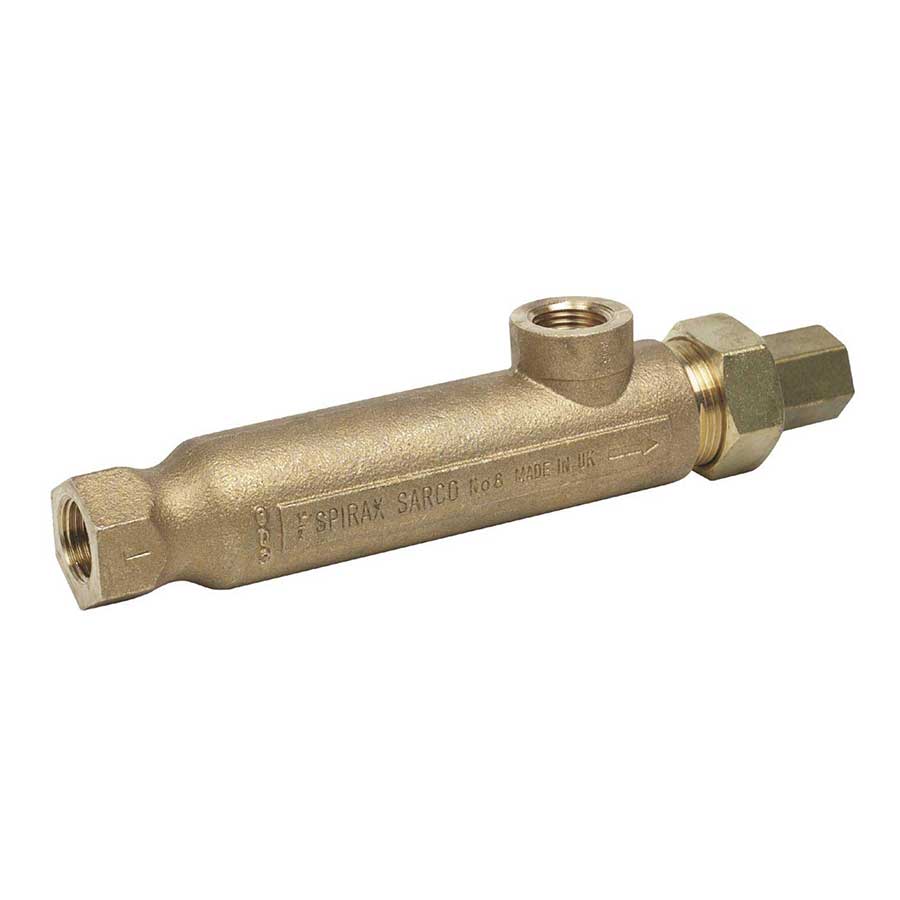

Spirax Sarco #8 Liquid Expansion Steam Trap

Spirax Sarco 0180191, #8 Liquid Expansion Steam Trap, 1/2 in, NPT, 140 to 212 deg F Operating, 250 psig Operating, Bronze

CBPN:22890

MPN:0180191

Price:
$1078.35 / EA

DESCRIPTION

Spirax Sarco Liquid Expansion Steam Trap, 1/2 in Nominal, NPT, 250 psig Operating, Bronze, 140 to 212 deg F Operating

The No.8 fixed temperature liquid expansion thermostatic steam trap has an oil filled element set to operate at a fixed temperature. It is easily adjusted to discharge at any temperature between 60 degC and 100 degC.

Spirax Sarco 0180191, #8 Liquid Expansion Steam Trap, 1/2 in, NPT, 140 to 212 deg F Operating, 250 psig Operating, Bronze

CBPN:22890

MPN:0180191

Price:
$1078.35 / EA


DESCRIPTION

Spirax Sarco Liquid Expansion Steam Trap, 1/2 in Nominal, NPT, 250 psig Operating, Bronze, 140 to 212 deg F Operating

The No.8 fixed temperature liquid expansion thermostatic steam trap has an oil filled element set to operate at a fixed temperature. It is easily adjusted to discharge at any temperature between 60 degC and 100 degC.

Specifications

Brand: Spirax Sarco
Weight: 2.7 lbs
Nominal Size: 1/2 in
End Style: FNPT
Material: Bronze
Max Operating Pressure: 250 psig
Max Allowable Pressure: 362 psig/up to 248 deg F
Max Allowable Temperature: 500 deg F/up to 152 psig
Manufacturer Name: Spirax-Sarco Inc
Series: #8
Standards and Approvals: Type B62 Body

Item Features

  • PN25 body design conditions
  • Designed for a maximum cold hydraulic test pressure of 38 barg

Resources

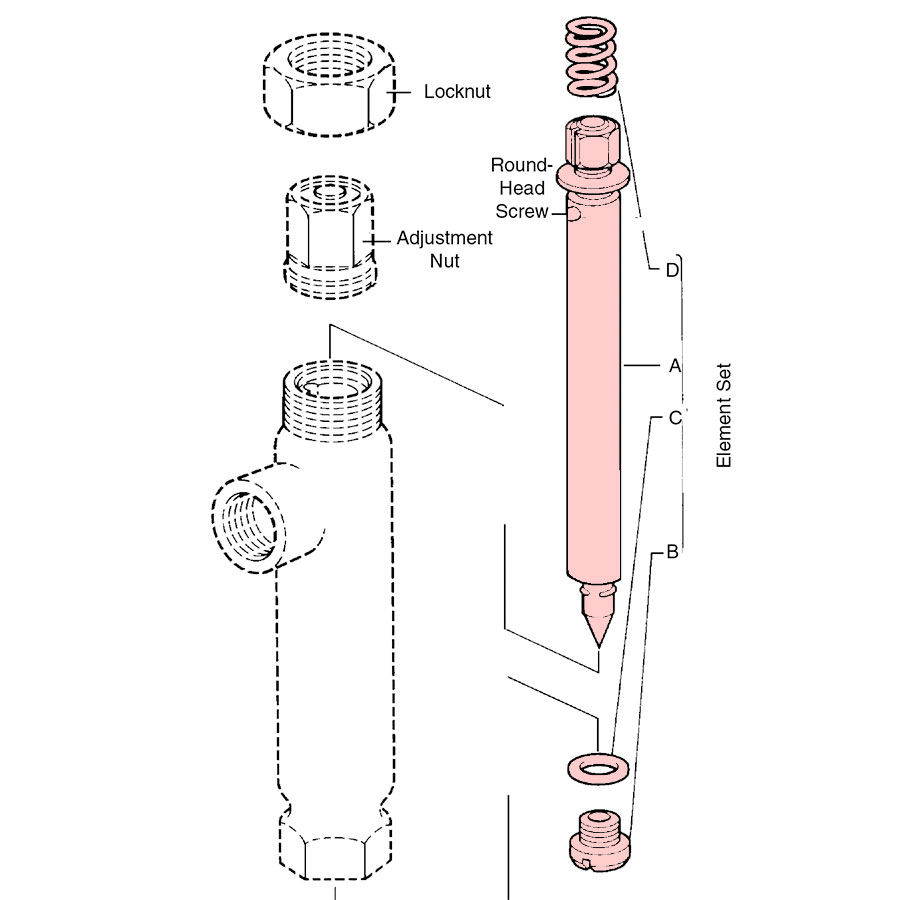

Spirax Sarco 0180191 Spare Parts

CBPN:

162326

MPN:

0180180

Price:
$ / EA
