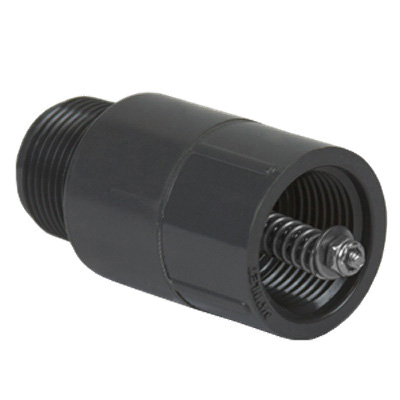

Spears® S1102-05 In-Line Spring Check Valve, 1/2 in Nominal, MNPT x FNPT End Style, PVC Body, Domestic
CBPN:284811
UPC:054211479889
MPN:S1102-05
DESCRIPTION
Spears® In-Line Spring Check Valve, 1/2 in Nominal, MNPT x FNPT End Style, 200 psi Pressure, 73 deg F, 2-3/4 in Inlet to Outlet Length, PVC Body, Stainless steel/EPDM Trim, 1-3/16 in OD Dimensions, Domestic/Import: Domestic
Adjustable feature allows control of back pressure in system, reduces water hammer, and prevents siphoning. Easily adjusts to hold back from 5 to 32 ft of pressure head, 1 psi (2.3 ft of head) for each full turn of the adjustment screw. Ideal for landscape and irrigation applicators, quickly installs with space saving in-line design.
Spears® S1102-05 In-Line Spring Check Valve, 1/2 in Nominal, MNPT x FNPT End Style, PVC Body, Domestic
CBPN:284811
MPN:S1102-05
UPC:054211479889
DESCRIPTION
Spears® In-Line Spring Check Valve, 1/2 in Nominal, MNPT x FNPT End Style, 200 psi Pressure, 73 deg F, 2-3/4 in Inlet to Outlet Length, PVC Body, Stainless steel/EPDM Trim, 1-3/16 in OD Dimensions, Domestic/Import: Domestic
Adjustable feature allows control of back pressure in system, reduces water hammer, and prevents siphoning. Easily adjusts to hold back from 5 to 32 ft of pressure head, 1 psi (2.3 ft of head) for each full turn of the adjustment screw. Ideal for landscape and irrigation applicators, quickly installs with space saving in-line design.
Specifications
Item Features
- 2 to 14 lb adjustable spring tension
- Plus, popular configuration options of 1/2 in MIPT inlet x FIPT outlet and 3/4 in FIPT inlet x FIPT outlet
- Molded method of manufacture
- Stainless steel adjustment spring with EPDM seat
