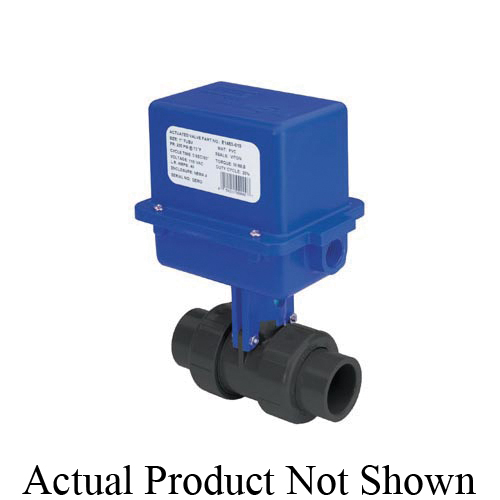

Spears® Ball Valve, Standard, Series: True Union 2000, 1-1/2 in Nominal, 115 VAC Electrical Rating, Socket/Threaded End Style, 235 psi Pressure, 73 deg F, Media: Water, Electrical Actuator, 7-7/8 in Top to Inlet Center, CPVC Body, PTFE/HDPE Seat/EPDM O-Ring Softgoods, Domestic/Import: Domestic

The Electro Actuated Ball Valve provides high quality, basic on-off electrical actuation at an economical price, with voltage options and special "2-wire" control available. This prepackaged combination is constructed with an all plastic NEMA 4X enclosure directly mounted to a PVC or CPVC valve body for lighter weight and a low profile design for minimal space requirements. All Electro Series Ball Valves are pressure rated to 235 psi and suitable for vacuum service. Available in IPS sizes 1/2 to 2 in, with socket, threaded, or flanged ends and choice of EPDM or FKM O-ring seals.
