Spears® 853-030

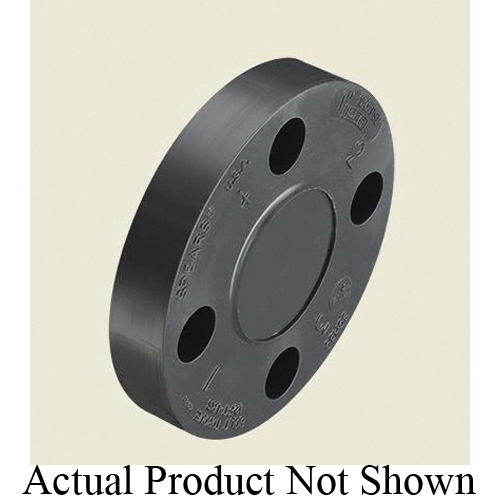

Spears® 853-030 Blind Flange, 3 in, PVC, SCH 80/XH, Domestic

CBPN:504

UPC:054211164501

MPN:853-030

Price:
$111.73 / EA

DESCRIPTION

Spears® Blind Flange, 3 in Nominal, 7-1/2 in Outside Dia, 1-1/16 in Thickness, 6 in Bolt Circle, 150 psi, 150 lb, SCH 40/STD x SCH 80/XH, 73 deg F, PVC, Gray, Domestic

All thermoplastic flanges shall be produced from PVC Type I Cell Classification 12454 or CPVC Type IV Cell Classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF International. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by Spears Manufacturing Company.

Spears® 853-030 Blind Flange, 3 in, PVC, SCH 80/XH, Domestic

CBPN:504

MPN:853-030

UPC:054211164501

Price:
$111.73 / EA


DESCRIPTION

Spears® Blind Flange, 3 in Nominal, 7-1/2 in Outside Dia, 1-1/16 in Thickness, 6 in Bolt Circle, 150 psi, 150 lb, SCH 40/STD x SCH 80/XH, 73 deg F, PVC, Gray, Domestic

All thermoplastic flanges shall be produced from PVC Type I Cell Classification 12454 or CPVC Type IV Cell Classification 23447. Bolt hole patterns shall conform to ANSI/ASME B-16.5 CL 150. All flanges shall be constructed from materials certified for potable water use by NSF International. All 1/2 in through 16 in injection molded flanges and all fabricated flanges with steel rings shall be pressure rated to 150 psi for water at 73 deg F, as manufactured by Spears Manufacturing Company.

Specifications

Brand: Spears®
Weight: 1.62 lbs
Nominal Size: 3 in
Material: PVC
Schedule Rating: SCH 80/XH
Bolt Circle Diameter: 6 in
Color: Gray
Manufacturer Name: Spears Manufacturing
Outside Diameter: 7-1/2 in
Pressure Rating: 150 psi
Temperature Rating: 73 deg F
Thickness: 1-1/16 in
Application: For joining plastic to metal piping systems
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784 | ASTM D2467 | ASTM F1498 | ANSI B16.5 | NSF 61
