Spears® 852-010C 1-Piece Flange, 1 in, CPVC, SCH 80/XH, FNPT, 4-1/4 in OD, Domestic
CBPN:18332
UPC:054211184400
MPN:852-010C
Price:
$52.50 / EA
DESCRIPTION

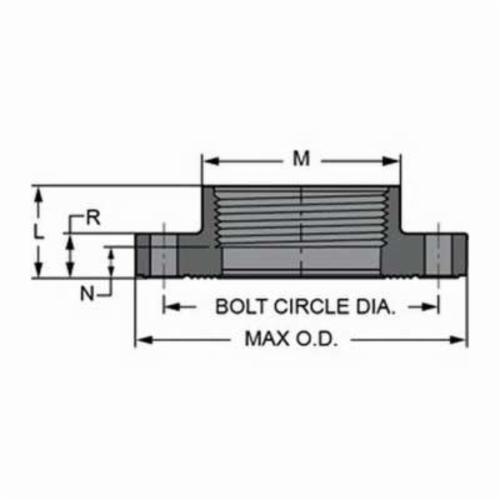

Spears® Flange, 1-Piece, 1 in Nominal, 4-1/4 in Outside Dia, 3-1/8 in Bolt Circle, FNPT, 150 psi, SCH 80/XH, 73 deg F, CPVC, Gray, 1-5/16 in L, Domestic
Spears® 852-010C 1-Piece Flange, 1 in, CPVC, SCH 80/XH, FNPT, 4-1/4 in OD, Domestic
CBPN:18332
MPN:852-010C
UPC:054211184400
Price:
$52.50 / EA
DESCRIPTION
Spears® Flange, 1-Piece, 1 in Nominal, 4-1/4 in Outside Dia, 3-1/8 in Bolt Circle, FNPT, 150 psi, SCH 80/XH, 73 deg F, CPVC, Gray, 1-5/16 in L, Domestic
Specifications
Brand: Spears®
Weight: 0.49 lbs
Nominal Size: 1 in
Material: CPVC
Connection Type: FNPT
Schedule Rating: SCH 80/XH
Bolt Circle Diameter: 3-1/8 in
Color: Gray
Dimensions: 1-5/16 in L
Manufacturer Name: Spears Manufacturing
Outside Diameter: 4-1/4 in
Pressure Rating: 150 psi
Temperature Rating: 73 deg F
Type: 1-Piece
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM F439 | ASTM F1498 | ANSI B16.5 | ASTM D1784 | NSF 61
