Spears® 5691-002 Angle Pattern Needle Valve, 1/4 in Nominal, FNPT End Style, PVC Body, Domestic
CBPN:236903
UPC:054211540350
MPN:5691-002
DESCRIPTION

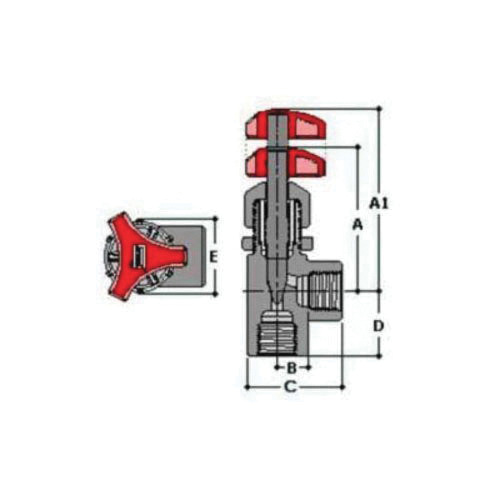

Spears® Needle Valve, Angle Pattern, 1/4 in Nominal, FNPT, 235 psi, 140 deg F, Handle Actuator, 1-3/16 in Inlet to Outlet Length, 3 to 3-1/2 in Top to Inlet Center, PVC Body, GFPP Trim, PTFE Stem Seal, Gray, Domestic
Needle valves provide proportional opening to needle travel for more accurate metering applications and other fine adjustment flow control applications. Special design PTFE seal eliminates elastomer type seals or O-rings that can contribute to chemical compatibility problems. PVC, CPVC and Polypropylene valves are available with 1/4 in, 3/8 in and 1/2 in NPT female threaded ends in either standard globe pattern or special angle pattern configuration that eliminates need for additional elbow in various system setups.
Spears® 5691-002 Angle Pattern Needle Valve, 1/4 in Nominal, FNPT End Style, PVC Body, Domestic
CBPN:236903
MPN:5691-002
UPC:054211540350
DESCRIPTION
Spears® Needle Valve, Angle Pattern, 1/4 in Nominal, FNPT, 235 psi, 140 deg F, Handle Actuator, 1-3/16 in Inlet to Outlet Length, 3 to 3-1/2 in Top to Inlet Center, PVC Body, GFPP Trim, PTFE Stem Seal, Gray, Domestic
Needle valves provide proportional opening to needle travel for more accurate metering applications and other fine adjustment flow control applications. Special design PTFE seal eliminates elastomer type seals or O-rings that can contribute to chemical compatibility problems. PVC, CPVC and Polypropylene valves are available with 1/4 in, 3/8 in and 1/2 in NPT female threaded ends in either standard globe pattern or special angle pattern configuration that eliminates need for additional elbow in various system setups.
Specifications
Item Features
- Chemical and corrosion resistant PVC, CPVC or PP construction
- Precision metering chamber
- Globe and angle body configurations
- Removable bonnet for easy disassembly and cleaning
- Built-In panel or bracket mounting nut
- Solid PTFE stem seal-no elastomers seal or lubricants used
- Easy grip polypropylene handle
