Spears® 467SE-248SR

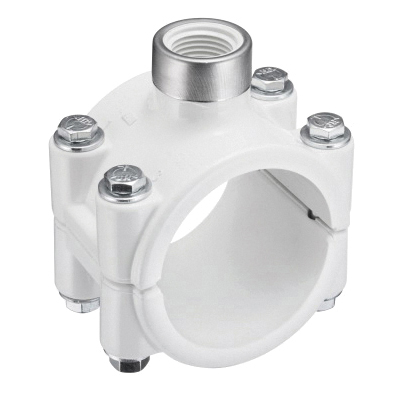

Spears® 467SE-248SR Clamp-On Pipe Saddle, 2 x 3/4 in Nominal, Special Reinforced FNPT Connection, 7/8 in Dia Hole, PVC, EPDM O-Ring, SCH 40/STD Domestic

CBPN:238126

UPC:054211789766

MPN:467SE-248SR

Price:
$78.52 / EA

DESCRIPTION

Spears® Pipe Saddle, Clamp-On, 2 x 3/4 in Nominal, Special Reinforced FNPT, 7/8 in Hole Dia, SCH 40/STD, 235 psi, Stainless Steel Bolt, PVC Clamp, 3-7/16 in W x 2-7/16 in D, White, Domestic

All PVC schedule 40 white fittings shall be produced by Spears® Manufacturing Company from PVC Type I cell classification 12454, conforming to ASTM D1784. All injection molded PVC Schedule 40 white fittings shall be certified for potable water service by NSF® International and manufactured in strict compliance to ASTM D 2466. All fabricated fittings shall be produced in accordance with Spears® General Specifications for Fabricated Fittings.

Spears® 467SE-248SR Clamp-On Pipe Saddle, 2 x 3/4 in Nominal, Special Reinforced FNPT Connection, 7/8 in Dia Hole, PVC, EPDM O-Ring, SCH 40/STD Domestic

CBPN:238126

MPN:467SE-248SR

UPC:054211789766

Price:
$78.52 / EA

Spears logo

DESCRIPTION

Spears® Pipe Saddle, Clamp-On, 2 x 3/4 in Nominal, Special Reinforced FNPT, 7/8 in Hole Dia, SCH 40/STD, 235 psi, Stainless Steel Bolt, PVC Clamp, 3-7/16 in W x 2-7/16 in D, White, Domestic

All PVC schedule 40 white fittings shall be produced by Spears® Manufacturing Company from PVC Type I cell classification 12454, conforming to ASTM D1784. All injection molded PVC Schedule 40 white fittings shall be certified for potable water service by NSF® International and manufactured in strict compliance to ASTM D 2466. All fabricated fittings shall be produced in accordance with Spears® General Specifications for Fabricated Fittings.

Specifications

BrandSpears®
Weight0.63 lbs
Nominal Size2 x 3/4 in
Connection TypeSpecial Reinforced FNPT
Clamp MaterialPVC
Schedule RatingSCH 40/STD
Bolt MaterialStainless Steel
ColorWhite
Dimensions3-7/16 in W x 2-7/16 in D
Hole Diameter7/8 in
Manufacturer NameSpears Manufacturing
Pressure Rating235 psi
TypeClamp-On
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASTM D1784/2466 | NSF Approved

Item Features

  • Exceptional chemical and corrosion resistance
  • High temperature ratings
  • Lower installation costs
  • Higher flow capacity
  • Additional fabricated configurations through 36 in
  • Advanced design specialty fittings
  • EPDM O-ring seal and stainless steel hardware
