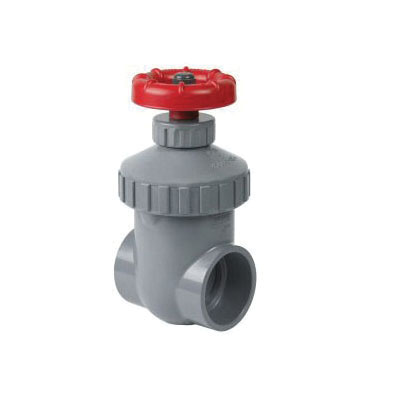

Spears® 2022-005C Gate Valve, 1/2 in Nominal, Socket End Style, CPVC Body, EPDM Softgoods, Handwheel Actuator, Domestic
CBPN:236769
UPC:054211519509
MPN:2022-005C
DESCRIPTION
Spears® Gate Valve, 1/2 in Nominal, Socket End Style, 200 psi Pressure, 200 deg F, Handwheel Actuator, 2-13/16 in Inlet to Outlet Length, 4-1/8 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM O-Ring Softgoods, 2-5/8 in Diameter Hand Wheel, Gray, Domestic
This solid, proven design is well suited for a variety of chemical, industrial and irrigation applications. Spears® Gate Valves are feature-packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in, and in the full featured Heavy Industrial 4 in valve. See Spears® plug gate valves for 6 in size.
Spears® 2022-005C Gate Valve, 1/2 in Nominal, Socket End Style, CPVC Body, EPDM Softgoods, Handwheel Actuator, Domestic
CBPN:236769
MPN:2022-005C
UPC:054211519509
DESCRIPTION
Spears® Gate Valve, 1/2 in Nominal, Socket End Style, 200 psi Pressure, 200 deg F, Handwheel Actuator, 2-13/16 in Inlet to Outlet Length, 4-1/8 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM O-Ring Softgoods, 2-5/8 in Diameter Hand Wheel, Gray, Domestic
This solid, proven design is well suited for a variety of chemical, industrial and irrigation applications. Spears® Gate Valves are feature-packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in, and in the full featured Heavy Industrial 4 in valve. See Spears® plug gate valves for 6 in size.
Specifications
Item Features
- Tapered wedge with specially designed sealing surface
- Non-rising stem design
- O-ring stem seals instead of packing
- Positive grip, high impact polypropylene handwheel operator
- Fully serviceable, replaceable components accessible without valve removal
