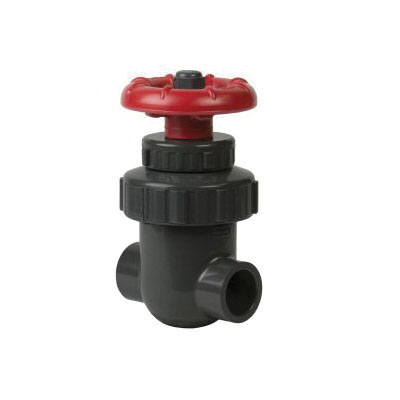

Spears® 2011-020 Gate Valve, 2 in Nominal, FNPT End Style, PVC Body, Buna-N Softgoods, Handwheel Actuator, Domestic
CBPN:261291
UPC:054211518052
MPN:2011-020
DESCRIPTION
Spears® Gate Valve, 2 in Nominal, FNPT End Style, 200 psi Pressure, 140 deg F, Handwheel Actuator, 3-64/69 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, PVC Body, PVC Trim, Buna-N® O-Ring Softgoods, 3-7/16 in Diameter Hand Wheel, Gray, Domestic
This solid, proven design is well suited for a variety of chemical, industrial and irrigation applications. Spears® Gate Valves are feature-packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in, and in the full featured Heavy Industrial 4 in valve. See Spears® plug gate valves for 6 in size.
Spears® 2011-020 Gate Valve, 2 in Nominal, FNPT End Style, PVC Body, Buna-N Softgoods, Handwheel Actuator, Domestic
CBPN:261291
MPN:2011-020
UPC:054211518052
DESCRIPTION
Spears® Gate Valve, 2 in Nominal, FNPT End Style, 200 psi Pressure, 140 deg F, Handwheel Actuator, 3-64/69 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, PVC Body, PVC Trim, Buna-N® O-Ring Softgoods, 3-7/16 in Diameter Hand Wheel, Gray, Domestic
This solid, proven design is well suited for a variety of chemical, industrial and irrigation applications. Spears® Gate Valves are feature-packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in, and in the full featured Heavy Industrial 4 in valve. See Spears® plug gate valves for 6 in size.
Specifications
Item Features
- Tapered wedge with specially designed sealing surface
- Non-rising stem design
- O-ring stem seals instead of packing
- Positive grip, high impact polypropylene handwheel operator
- Fully serviceable, replaceable components accessible without valve removal
- SCH 80 pvc's are thicker, stronger it will handle higher pressures and endure colder climates
