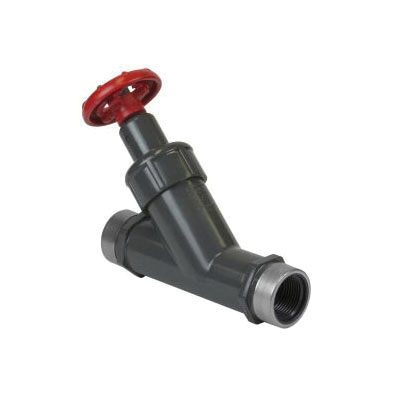

Spears® Y-Pattern Valve, 1 in Nominal, Special Reinforced FNPT End Style, 150 psi Pressure, 140 deg F, Handwheel Actuator, 7 in Inlet to Outlet Length, 5-1/8 in Top to Inlet Center, PVC Body, PVC Trim, EPDM/FKM O-Ring Softgoods, 2-3/8 in Diameter Hand Wheel, Gray, Domestic

The Y-Pattern valve is a closing-down, globe type valve design that provides proportional opening to seating disc travel. As such, Y-Pattern valves are ideally suited for flow regulating applications. The Y-pattern configuration reduces pressure loss over that of standard globe valves. Available in IPS Sizes 1/2 - 4 in with socket, SR threaded, flanged, socket union or SR threaded union end connectors.
