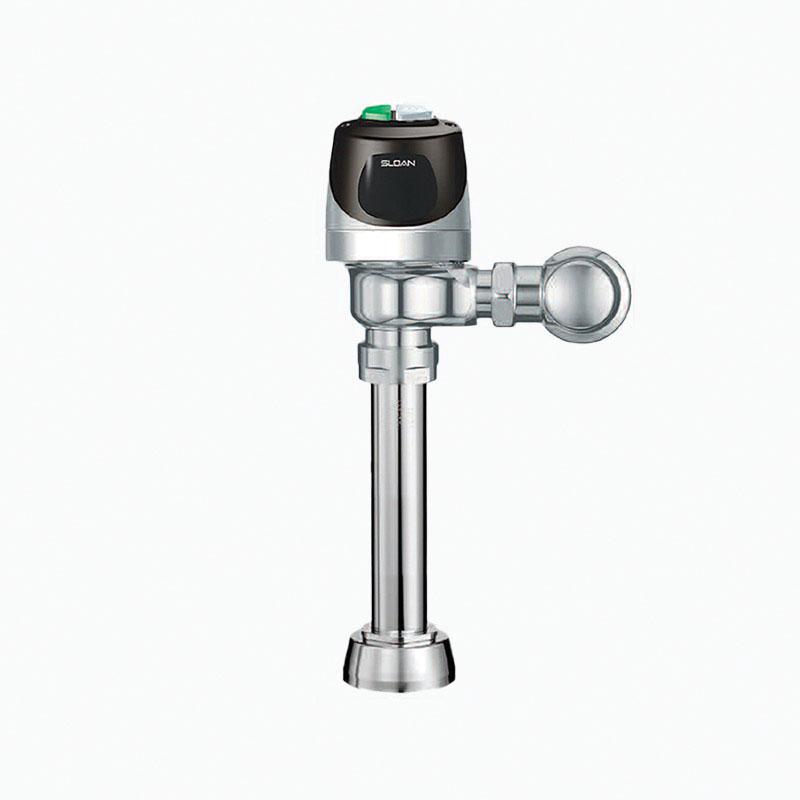

Sloan® 3370400 8111-1.6/1.1 Dual-Flush Sensor Exposed Flushometer, ECOS®, Power Source: Battery, 1.6/1.1 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:124334
UPC:671254341661
MPN:3370400
Price:
$611.61 / EA
DESCRIPTION
Sloan®, 3370400, Sensor Exposed Flushometer, Dual-Flush, Series: 8111-1.6/1.1, ECOS® Collection, Water Closet Fixture, Battery Power Source, 1.6/1.1 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, Battery Powered, Sensor Activated Sloan ECOS® Electronic Dual-Flush Model Water Closet Flushometer that includes a Valve Body with an Adjustable Ground Joint Tailpiece Connection for floor mounted or wall hung top spud bowls.
Sloan® 3370400 8111-1.6/1.1 Dual-Flush Sensor Exposed Flushometer, ECOS®, Power Source: Battery, 1.6/1.1 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:124334
MPN:3370400
UPC:671254341661
Price:
$611.61 / EA
DESCRIPTION
Sloan®, 3370400, Sensor Exposed Flushometer, Dual-Flush, Series: 8111-1.6/1.1, ECOS® Collection, Water Closet Fixture, Battery Power Source, 1.6/1.1 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, Battery Powered, Sensor Activated Sloan ECOS® Electronic Dual-Flush Model Water Closet Flushometer that includes a Valve Body with an Adjustable Ground Joint Tailpiece Connection for floor mounted or wall hung top spud bowls.
Specifications
Brand: Sloan®
Weight: 8.32 lbs
Collection: ECOS®
Power Source: Battery
Flush Rate: 1.6/1.1 gpf
Inlet Size: 1 in IPS
Spud Coupling: 1-1/2 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Water Closet
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Sensor Range: 22 to 42 in
Series: 8111-1.6/1.1
Type: Dual-Flush
Valve Design: Diaphragm
Includes: (4) Size AA Alkaline Batteries
Warranty: 3 Years Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | BAA Compliant | cUPC Listed | cUPC Green Certified | ASSE 1037 | ASTM Specified
Item Features
- Dual-flush model automatically initiates a 1.1 gpf or 1.6 gpf flush based on how long user remains in sensor range, buttons on top of the flush valve enable manual flushing with a standard or reduced flush at restroom visitor’s discretion
- Deploys an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- User friendly 3 sec flush delay
- High copper, low zinc brass castings for dezincification resistance
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
