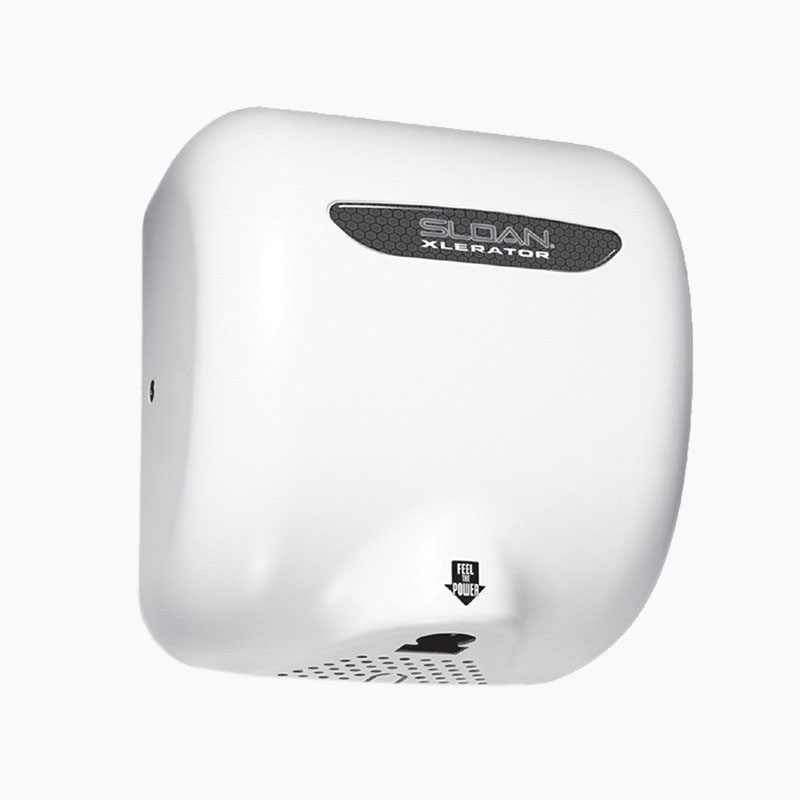

Sloan® XLERATOR® 3366051 EHD-501 Sensor Activated Electronic Hand Dryer, 16000 lfm Flow Rate, 1500 W Power Rating, 110/120 VAC, 12.5 A
CBPN:227625
UPC:671254266438
MPN:3366051
Price:
$958.71 / EA
DESCRIPTION
Sloan® XLERATOR® Electronic Hand Dryer, Sensor Activated, Series: EHD-501, 1500 W, 110/120 VAC, 12.5 A, 16000 lfm, 10 to 15 s Drying, 78 to 80 dB, Surface Mount, 135 deg F, Die Cast Zinc, Satin Chrome, 11-3/4 in L x 6-11/16 in D x 12-11/16 in H
Sloan® XLERATOR® 3366051 EHD-501 Sensor Activated Electronic Hand Dryer, 16000 lfm Flow Rate, 1500 W Power Rating, 110/120 VAC, 12.5 A
CBPN:227625
MPN:3366051
UPC:671254266438
Price:
$958.71 / EA
DESCRIPTION
Sloan® XLERATOR® Electronic Hand Dryer, Sensor Activated, Series: EHD-501, 1500 W, 110/120 VAC, 12.5 A, 16000 lfm, 10 to 15 s Drying, 78 to 80 dB, Surface Mount, 135 deg F, Die Cast Zinc, Satin Chrome, 11-3/4 in L x 6-11/16 in D x 12-11/16 in H
Specifications
Brand: Sloan®
Weight: 17.28 lbs
Power Rating: 1500 W
Voltage Rating: 110/120 VAC
Amperage Rating: 12.5 A
Dimensions: 11-3/4 in L x 6-11/16 in D x 12-11/16 in H
Drying Time: 10 to 15 s
Finish: Satin Chrome
Flow Rate: 16000 lfm
Manufacturer Name: Sloan Valve Company
Material: Die Cast Zinc
Mounting Type: Surface
Series: EHD-501
Sound Level: 78 to 80 dB
Temperature Range: 135 deg F
Type: Sensor Activated
Includes: Tamper-Proof Cover Fasteners
Application: Schools, Hospitals, Airports, Service Stations, Restaurants, Correctional Facilities, Shopping Malls, Sport Stadiums, Movie Theaters, Convention Centers, Office Buildings, Factories and Hotels
Warranty: 5 Years Limited
Country of Origin: US
Standards and Approvals: ADA Compliant | BAA Compliant | cULus Listed | GreenSpec® Listed | OSHA | UL Listed
Item Features
- Hygienic hand drying solution
- 8 s dry time
- Electric specifications: 110 to 120V to 11.3 to 12.2 A, 1240 to 1450 W, 50/60 Hz
- Adjustable speed and sound (high-low)
- Adjustable heat (high-low-off)
- 95% cost savings v/s paper towels
- Vandal resistant cover design
- Suggested mounting heights for ideal performance (from floor to bottom of dryer): Men- 45 in (114 cm), Women - 43 in (109 cm), Teenagers - 41 in (104 cm), Children - 35 in (89 cm), ADA - 37 in (94 cm)
- Can install multiple units on one circuit
- 35 s lockout feature if hands are not removed
- Virtually maintenance free
- Air temperature of up to 135 deg F at a 72 deg F ambient room temperature at the hands (4 in below air outlet)
- Quantity recommendations: (1) dryer for every (2) sink stations is sufficient for most applications
- For high traffic applications we suggest (1) dryer per sink station
- XLerator® model ultra-fast, sensor activated hand dryer for surface mounting
