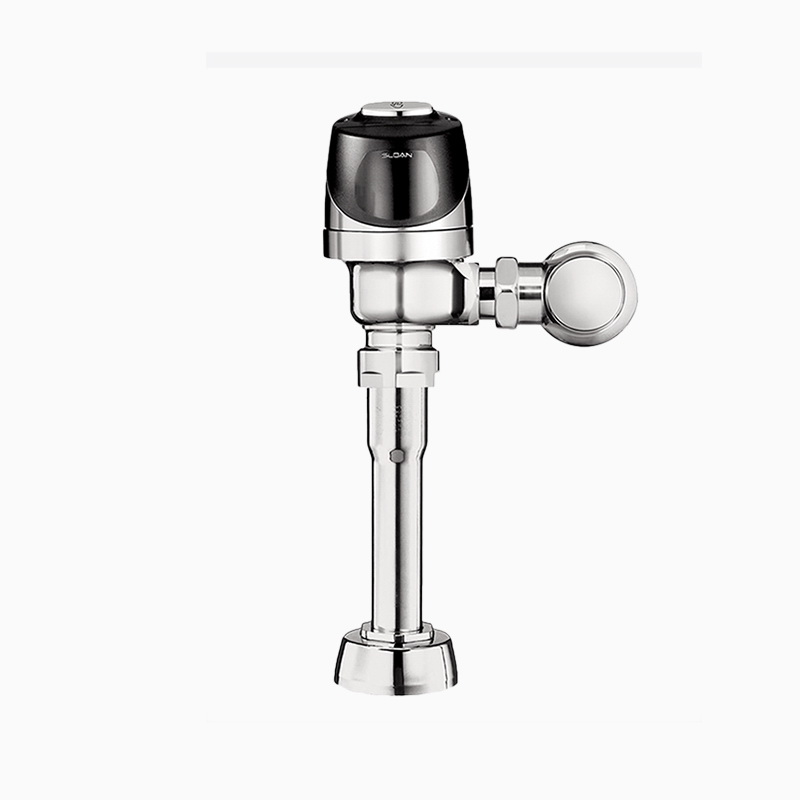

Sloan® 3250409 8180 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 1.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:81387
UPC:671254266896
MPN:3250409
Price:
$602.89 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8180, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 1.5 gpf Flush, 1 in IPS Inlet, 1-1/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Sloan® 3250409 8180 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 1.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:81387
MPN:3250409
UPC:671254266896
Price:
$602.89 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8180, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 1.5 gpf Flush, 1 in IPS Inlet, 1-1/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Specifications
Brand: Sloan®
Weight: 8.717 lbs
Collection: G2 Optima Plus®
Power Source: Battery
Flush Rate: 1.5 gpf
Inlet Size: 1 in IPS
Spud Coupling: 1-1/4 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Urinal
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Sensor Range: 15 to 30 in
Series: 8180
Type: Single-Flush
Valve Design: Diaphragm
Includes: (4) Size AA Alkaline Batteries
Warranty: 3 Years Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASSE Valve | ADA Compliant | BAA Compliant | cUPC Listed | UL Listed
Item Features
- ADA compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Adjustable tailpiece to accommodate different height requirements
- High copper, low zinc brass castings for dezincification resistance
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Exposed, battery powered, sensor operated G2® model urinal flushometer
