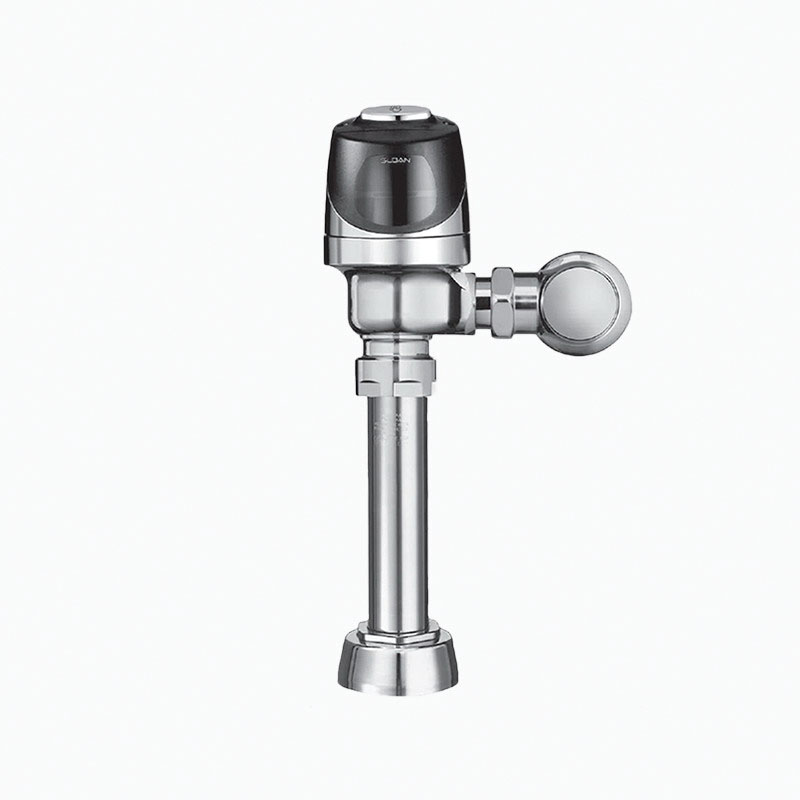

Sloan® 3250404 8100 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:81770
UPC:671254266810
MPN:3250404
Price:
$602.89 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8100, G2 Optima Plus® Collection, Water Closet Fixture, Battery Power Source, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, Battery Powered, Sensor Operated G2® Model Water Closet Flushometer for floor mounted or wall hung top spud bowls.
Sloan® 3250404 8100 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN:81770
MPN:3250404
UPC:671254266810
Price:
$602.89 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8100, G2 Optima Plus® Collection, Water Closet Fixture, Battery Power Source, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, Battery Powered, Sensor Operated G2® Model Water Closet Flushometer for floor mounted or wall hung top spud bowls.
Specifications
Brand: Sloan®
Weight: 8.24 lbs
Collection: G2 Optima Plus®
Power Source: Battery
Flush Rate: 3.5 gpf
Inlet Size: 1 in IPS
Spud Coupling: 1-1/2 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Water Closet
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Sensor Range: 22 to 42 in
Series: 8100
Type: Single-Flush
Valve Design: Diaphragm
Warranty: 3 Years Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | ASSE Valve | BAA Compliant | UPC Listed | UL Listed
Item Features
- Automatically operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- User friendly 3 sec flush delay and Courtesy Flush® override button
- High copper, low zinc brass castings for dezincification resistance
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
