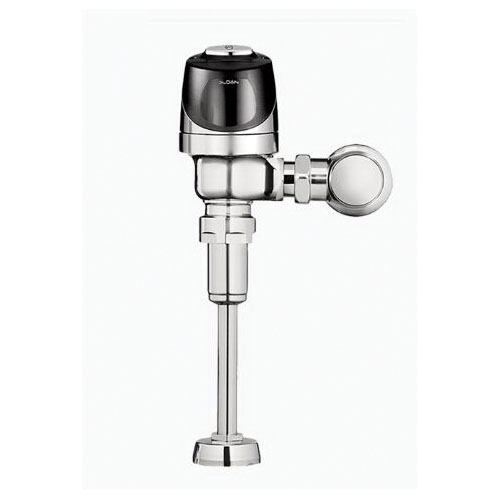

![Sloan G2 8186 Single-flush Water Closet Sensor Flushometer](/userfiles/ad/medium/Sloan_8186-1.jpg)
Sloan® 3250401 8186 Active Infrared Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 1 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome
CBPN:78484
UPC:671254266100
MPN:3250401
Price:
$602.89 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Active Infrared, Series: 8186, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome
Sloan® 3250401 8186 Active Infrared Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 1 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome
CBPN:78484
MPN:3250401
UPC:671254266100
Price:
$602.89 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Active Infrared, Series: 8186, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome
Specifications
Brand: Sloan®
Weight: 8 lbs
Collection: G2 Optima Plus®
Power Source: Battery
Flush Rate: 1 gpf
Inlet Size: 3/4 in IPS
Spud Coupling: 3/4 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Urinal
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Sensor Range: 15 to 30 in
Series: 8186
Type: Active Infrared
Valve Design: Diaphragm
Includes: (4) Size AA Alkaline Batteries
Standards and Approvals: ASSE Valve | ADA Compliant | ANSI/ASME A112.19.2 | ASSE 1037 | ASTM Specified | BAA Compliant | IAPMO Listed | UPC Listed
Item Features
- ADA compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Adjustable tailpiece to accommodate different height requirements
- High copper, low zinc brass castings for dezincification resistance
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Exposed, battery powered, sensor operated G2® model urinal flushometer
