Sloan® 3120001

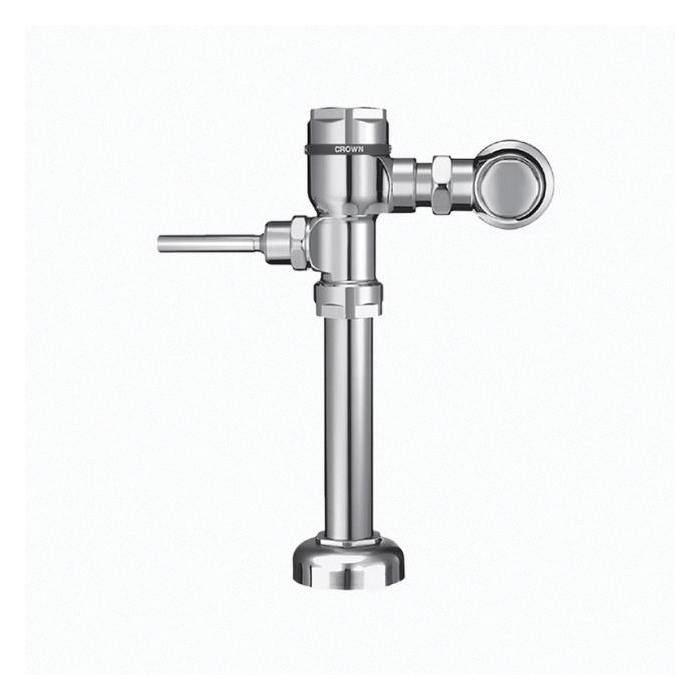

Sloan® Crown® 3120001 111 Single-Flush Manual Exposed Flushometer, 1.28 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

CBPN:227629

UPC:671254323896

MPN:3120001

Price:
$201.68 / EA

DESCRIPTION

Sloan® Crown® Manual Exposed Flushometer, Single-Flush, Series: 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Piston Operated Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Water Closet Flushometer for floor mounted or wall hung top spud bowls. Valve cannot be converted to exceed a low consumption flush.

Sloan® Crown® 3120001 111 Single-Flush Manual Exposed Flushometer, 1.28 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

CBPN:227629

MPN:3120001

UPC:671254323896

Price:
$201.68 / EA

Sloan logo

DESCRIPTION

Sloan® Crown® Manual Exposed Flushometer, Single-Flush, Series: 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Piston Operated Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Water Closet Flushometer for floor mounted or wall hung top spud bowls. Valve cannot be converted to exceed a low consumption flush.

Specifications

BrandSloan®
Weight6.748 lbs
Flush Rate1.28 gpf
Inlet Size1 in IPS
Spud Coupling1-1/2 in
Pressure Rating15 to 80 psi
Finish/ColorPolished Chrome
Connection LocationTop Spud
Fixture TypeWater Closet
Handle TypeNon-Hold Open Oscillating
Manufacturer NameSloan Valve Company
MaterialSemi-Red Brass
Rough-In Size11-1/2 in
Series111
TypeSingle-Flush
Valve DesignPiston Operated
Warranty3 Years Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsADA Compliant | BAA Compliant | cUPC Listed | cUPC Green Certified | Satisfies LEED Credits | WaterSense Listed | HEU Certified

Item Features

  • Flush volumes to meet water-efficiency goals
  • Unique cover design isolates threads from water source, protecting threads from harsh water conditions
  • Fixed volume piston with filtered O-ring by-pass
  • ADA-compliant, metal oscillating, non-hold open handle with triple seal handle packing keeps fixture from exceeding intended flush volume
  • Locking, vandal-resistant stop cap prevents tampering
  • Adjustable tailpiece accommodates different widths
  • High copper, low zinc brass casting for dezincification resistance ensures long life
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
