Sloan® 3080153

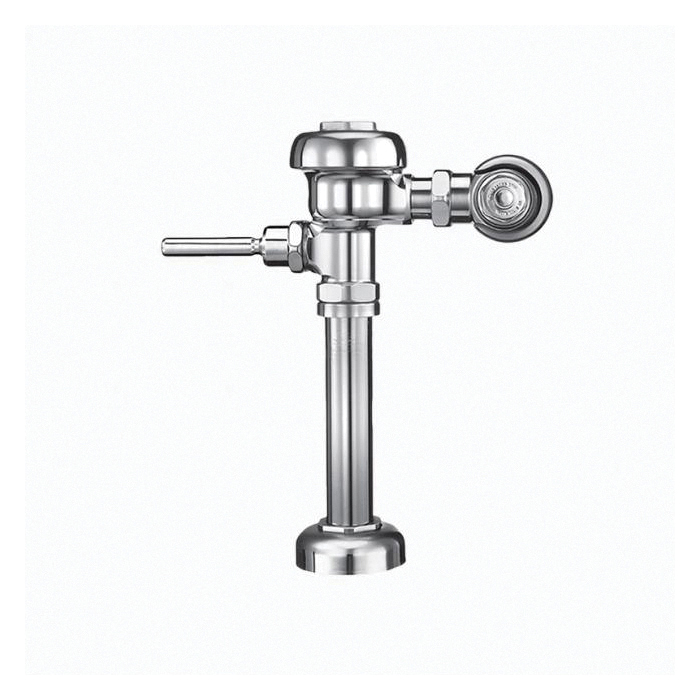

Sloan® Regal® 3080153 110-3.5-XL Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

CBPN:141475

UPC:671254123410

MPN:3080153

Price:
$174.67 / EA

DESCRIPTION

Sloan® Regal® Manual Exposed Flushometer, Single-Flush, Series: 110-3.5-XL, Water Closet Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Sloan® Regal® 3080153 110-3.5-XL Single-Flush Manual Exposed Flushometer, 3.5 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic

CBPN:141475

MPN:3080153

UPC:671254123410

Price:
$174.67 / EA

Sloan logo

DESCRIPTION

Sloan® Regal® Manual Exposed Flushometer, Single-Flush, Series: 110-3.5-XL, Water Closet Fixture, 3.5 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic

Specifications

BrandSloan®
Weight6.72 lbs
Flush Rate3.5 gpf
Inlet Size1 in IPS
Spud Coupling1-1/2 in
Pressure Rating15 to 80 psi
Finish/ColorPolished Chrome
Connection LocationTop Spud
Fixture TypeWater Closet
Handle TypeNon-Hold Open Oscillating
Manufacturer NameSloan Valve Company
MaterialSemi-Red Brass
Rough-In Size11-1/2 in
Series110, 110-3.5-XL
TypeSingle-Flush
Valve DesignDiaphragm
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsADA Compliant | BAA Compliant | UPC Listed | Valve Shall be in Compliance with the Applicable Sections of ASSE 1037

Item Features

  • Flush volumes start as low as 1.6 gpf/6.0 lpf to meet water-efficiency objectives
  • Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
  • Low consumption flush accuracy controlled by Para-Flo™ technology
  • Integrity of the product is maintained with control stop plug
  • Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
  • Adjustable tailpiece
  • Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
  • Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
