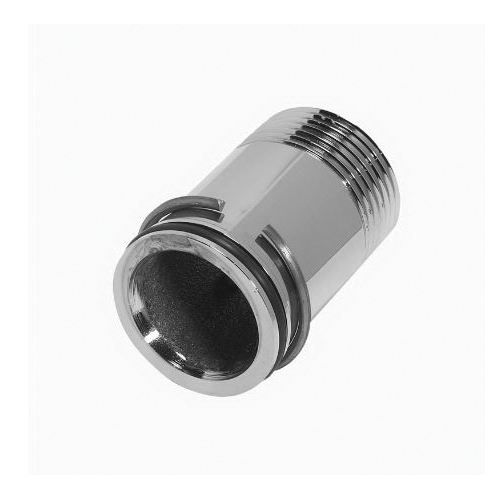

Sloan® 0308803 H-551-A-CP Tailpiece Assembly, For Use With: Royal® and Regal® Flush Valve, Brass, Polished Chrome, Domestic
CBPN:53048
UPC:671254010895
MPN:0308803
DESCRIPTION
Sloan® Tailpiece Assembly, Series: H-551-A-CP, For Use With: Royal® and Regal® Flush Valve, Brass, Polished Chrome, 3-1/16 in, Domestic
The majority of flushometers supplied by Sloan since 1964 feature the H-551-A adjustable tailpiece. The valve tailpiece connects to the control stop with a sliding O-ring seal. The H-551-A adjustable tailpiece standard length is 2-1/16 in (54 mm). This is designed for a standard flushometer installation in which the distance between the centerline of the valve and the centerline of the water supply inlet is 4-3/4 in (121 mm). The adjustable tailpiece allows for a variance of +/-1/2 in (13 mm) from this nominal dimension.
