RIDGID® 93287

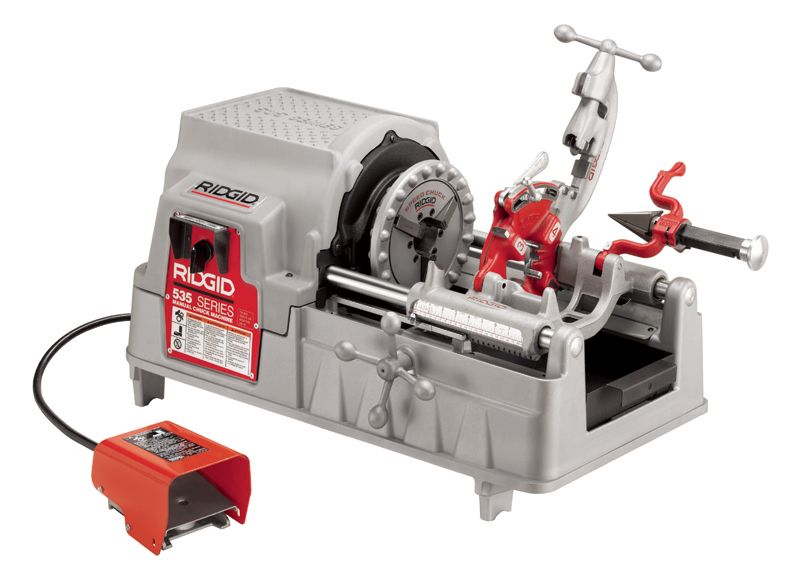

RIDGID® 93287 535 Kit Threading Machine Kit, 1/2 to 2 in Pipe, 38-1/8 in L x 20-1/2 in W, 1/4 to 2 in Bolt, 115 VAC, 1/2 hp, 36 rpm Speed

CBPN:9324

UPC:095691932877

MPN:93287

Price:
$8510.77 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

DESCRIPTION

RIDGID® Threading Machine Kit, Kit, 1/2 to 2 in, 36 rpm, 1/2 hp, 115 VAC, 15 A, 1/4 to 2 in Bolt, 38-1/8 in Overall Length, 20-1/2 in Overall Width, Reversing: Yes, Forward/Off/Reverse/Integral Foot Switch Control

The model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A automatic and other RIDGID® equipment.

RIDGID® 93287 535 Kit Threading Machine Kit, 1/2 to 2 in Pipe, 38-1/8 in L x 20-1/2 in W, 1/4 to 2 in Bolt, 115 VAC, 1/2 hp, 36 rpm Speed

CBPN:9324

MPN:93287

UPC:095691932877

Price:
$8510.77 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.

RIDGID logo

DESCRIPTION

RIDGID® Threading Machine Kit, Kit, 1/2 to 2 in, 36 rpm, 1/2 hp, 115 VAC, 15 A, 1/4 to 2 in Bolt, 38-1/8 in Overall Length, 20-1/2 in Overall Width, Reversing: Yes, Forward/Off/Reverse/Integral Foot Switch Control

The model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A automatic and other RIDGID® equipment.

Specifications

BrandRIDGID®
Weight286 lbs
Pipe Capacity1/2 to 2 in
Overall Length38-1/8 in
Overall Width20-1/2 in
Bolt Size1/4 to 2 in
Voltage Rating115 VAC
Horsepower1/2 hp
Speed36 rpm
ReversingYes
Amperage Rating15 A
Bare Tool/KitKit
Control TypeForward/Off/Reverse/Integral Foot Switch
Manufacturer NameEmerson Electric
Includes42365 - 341 Reamer, 46030 - 3/16 in Hex Key, 42390 - 820 Wheel Type Cutter, 44185 - E1032 Wheel Cutter, 46015 - 5/32 in Hex Key, 47745 - 1/2 to 3/4 in Universal Alloy Die Set, 47750 - 1 to 2 in Universal Alloy Die Set, 70835 - Nu-Clear Oil and 97065 - 811A 1/8 to 2 NPT Self-Opening, RH Die Head
WarrantyLifetime
Country of OriginUS

Item Features

  • Large 1.75 gal oil tray
  • Large chip tray
  • Generous top cover for keeping tools and fittings handy
  • High clearance carriage makes threading easier
  • Speed chuck with rocker action jaws centers and grips work piece instantly
  • Can be used with geared threader models 141 and 161
  • Uses Model: 816/817 semi-automatic, Model: 815A self-opening or Model: 811A quick-opening die heads
  • Length gauge for quick, accurate cut-off
  • Steel Cabinet Features: 17 ga steel walls and welded construction, two internal and one external storage shelves, Oversized bi-fold door with steel clasp, Cut-outs for power cord and foot switch storage and two drain plugs for easy cleaning
  • Speed chuck with three replaceable rocker action jaw inserts
  • Self-centering full floating cutters
  • Cam action turns with chuck rear centering device
  • Self-priming gerotor oil pump
