What are Spirax Sarco FT14 Float Thermostatic Traps?
Float & Thermostatic Steam Traps incorporates a float valve mechanism that adjusts to release condensate continuously at steam temperature, while simultaneously releasing non-condensable gases through a separate internal balanced pressure thermostatic air vent.
Common applications for this trap include all process equipment, especially those controlled by modulating temperature control valves. Additionally, it is suitable for unit heaters, air heating coils, heat exchangers, and steam main drip stations.
How does The Spirax FT14 Steam Trap work?
Traditional Float and Thermostatic Steam Traps operate by using a float mechanism to open a valve as condensate accumulates, while a thermostatic element adjusts the valve opening based on steam temperature. This ensures continuous and efficient removal of condensate and gases, in order to maintain system performance.
Watch the FT14 Steam Trap video below for an animated overview of its operation.
Below is a more detailed description of the FT14 Steam Trap’s Operation as described in the video.
| Image | Description of Operational Step |
|---|---|
|

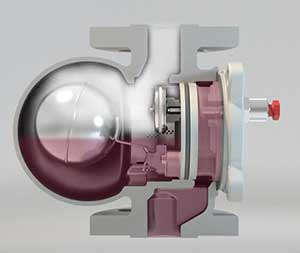

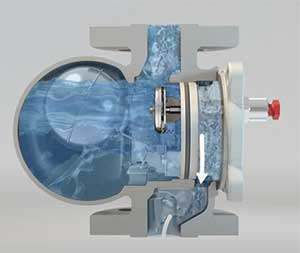

Initially the air and cool condensate enters the trap escaping via both the capsule port and the open ball trap orifice. |
|

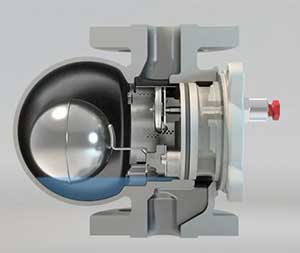

As the condensate begins to heat up, the capsule expands and closes, but the float is still in the fully open position. |
|

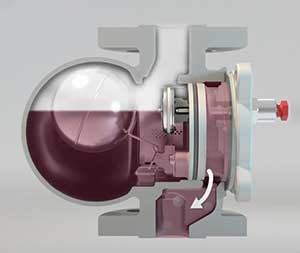

When the steam reaches the trap the float begins to drop and this will regulate the output. |
|
Condensate leaving the trap will experience a pressure drop. This drop in pressure will generate flash steam. |
What options are available for Spirax Sarco FT14 Pump Trap specifications?
Spirax Sarco makes 3 models of the FT14 Steam Trap:
- IFT14 is available in sizes 1/2" and 3/4" only, with a ductile iron body
- FT14 is available in sizes 1/2" through 2"
- FT14C is available in sizes 1/2" - 2" with Combination (C) Air Vent and Steam Lock Release (SLR)
| Model | Size Range | Pressure | Connection | Body Material | Notes |
|---|---|---|---|---|---|
| IFT14-4.5 |
½" - 6150093
¾" - 6150066 |
65 psig (4.5 bar g) | NPT | Ductile Iron | Spira-tec Ready Connection |
| FT14-4.5C |
½" - 1446691
¾" - 1446991 |
65 psig (4.5 bar g) | NPT | Ductile Iron | Combination (C) Air Vent and SLR (steam lock release) |
| FT14HC-4.5 | 1" HC - 0664091 | 65 psig (4.5 bar g) | NPT | Ductile Iron | |
| FT14HC-4.5C | 1" HC - 0664391 | 65 psig (4.5 bar g) | NPT | Ductile Iron | Combination (C) Air Vent and SLR (steam lock release)
|
| FT14-4.5 | 1-½" - 0666790
2" - 0668790 |
65 psig (4.5 bar g) | NPT | Cast Iron | Spira-tec Ready Connection |
| FT14-4.5C | 1-½" - 0666690
2" - 0668690 |
65 psig (4.5 bar g) | NPT | Cast Iron | Combination (C) Air Vent and SLR (steam lock release) |
| IFT14-10 |
½" - 6150193
¾" - 6150166 |
145 psig (10 bar g) | NPT | Ductile Iron | Spira-tec Ready Connection |
| FT14-10C |
½" - 1446791
¾" - 1447091 |
145 psig (10 bar g) | NPT | Ductile Iron | Combination (C) Air Vent and SLR (steam lock release) |
| FT14HC-10 | 1" HC - 0664191 | 145 psig (10 bar g) | NPT | Ductile Iron | |
| FT14HC-10C | 1" HC - 0664491 | 145 psig (10 bar g) | NPT | Ductile Iron | Combination (C) Air Vent and SLR (steam lock release)
|
| FT14-10 | 1-½" - 0666790
2" - 0668790 |
145 psig (10 bar g) | NPT | Cast Iron | Spira-tec Ready Connection |
| FT14-10C | 1-½" - 0666991
2" - 0668494 |
145 psig (10 bar g) | NPT | Cast Iron | Combination (C) Air Vent and SLR (steam lock release) |
| IFT14-14 |
½" - 6150293
¾" - 6150266 |
200 psig (14 bar g) | NPT | Ductile Iron | Spira-tec Ready Connection |
| FT14-14C |
½" - 1446891
¾" - 1447191 |
200 psig (14 bar g) | NPT | Ductile Iron | Combination (C) Air Vent and SLR (steam lock release) |
| FT14HC-14 | 1" HC - 0664291 | 200 psig (14 bar g) | NPT | Ductile Iron | |
| FT14HC-14C | 1" HC - 0664591 | 200 psig (14 bar g) | NPT | Ductile Iron | Combination (C) Air Vent and SLR (steam lock release)
|
| FT14-14 | 1-½" - 0666890
2" - 0668890 |
200 psig (14 bar g) | NPT | Cast Iron | Spira-tec Ready Connection |
| FT14-14C | 1-½" - 0666991
2" - 0668594 |
200 psig (14 bar g) | NPT | Cast Iron | Combination (C) Air Vent and SLR (steam lock release) |
For Capacities, download the FT14, IFT14 and FT14C Thermostatic Steam Trap Capacities Chart.
Are there FT14 Spare Parts available?
Yes, there are a variety of spare parts for FT14 Steam Traps. Please see the descriptions below to find the Spirax FT14 spare part or parts that meet your needs.
| Product Image | Spare Description and link to product specs, pricing and availability |
|---|---|

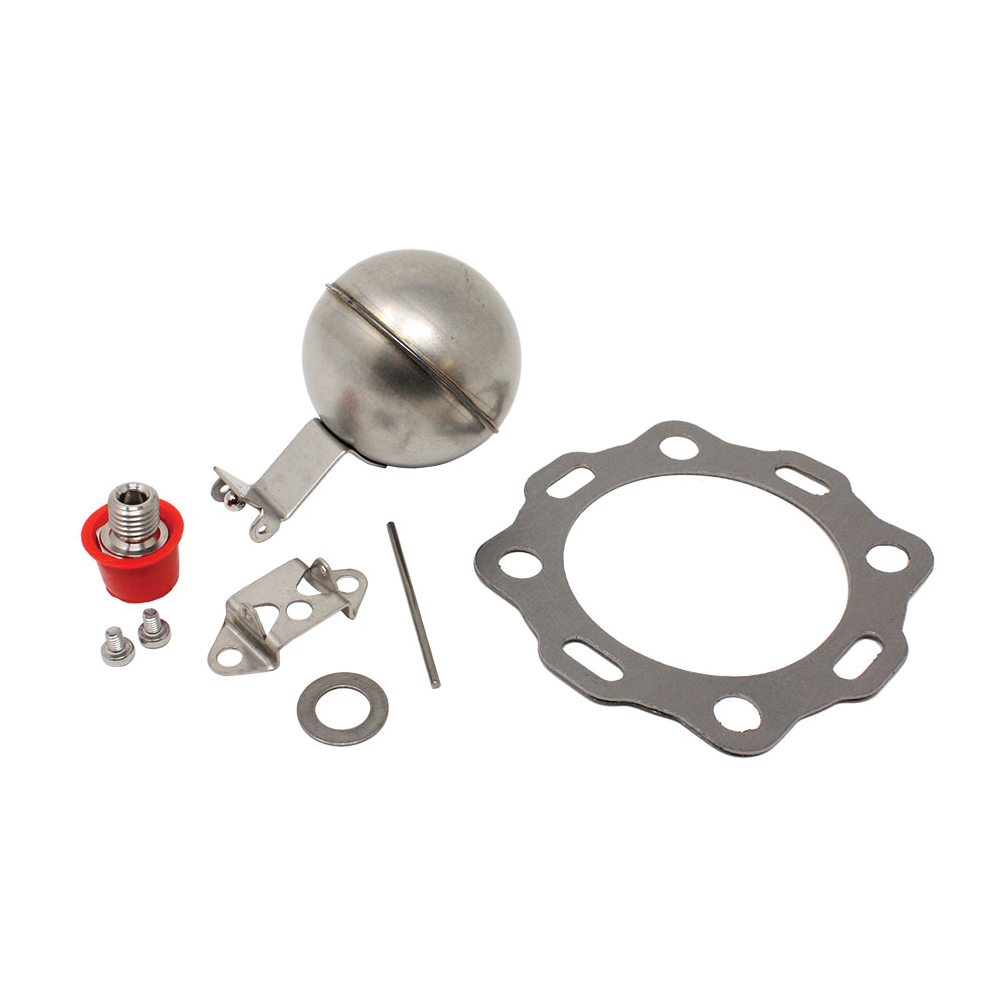

Shown: FT14 and IFT14, 1/2" and 3/4" Main Valve Assembly |
FT14 Main Valve Assembly
|

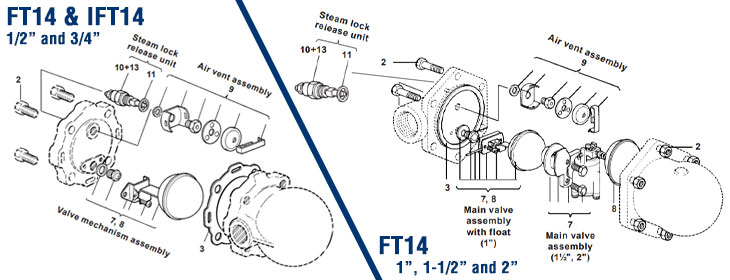

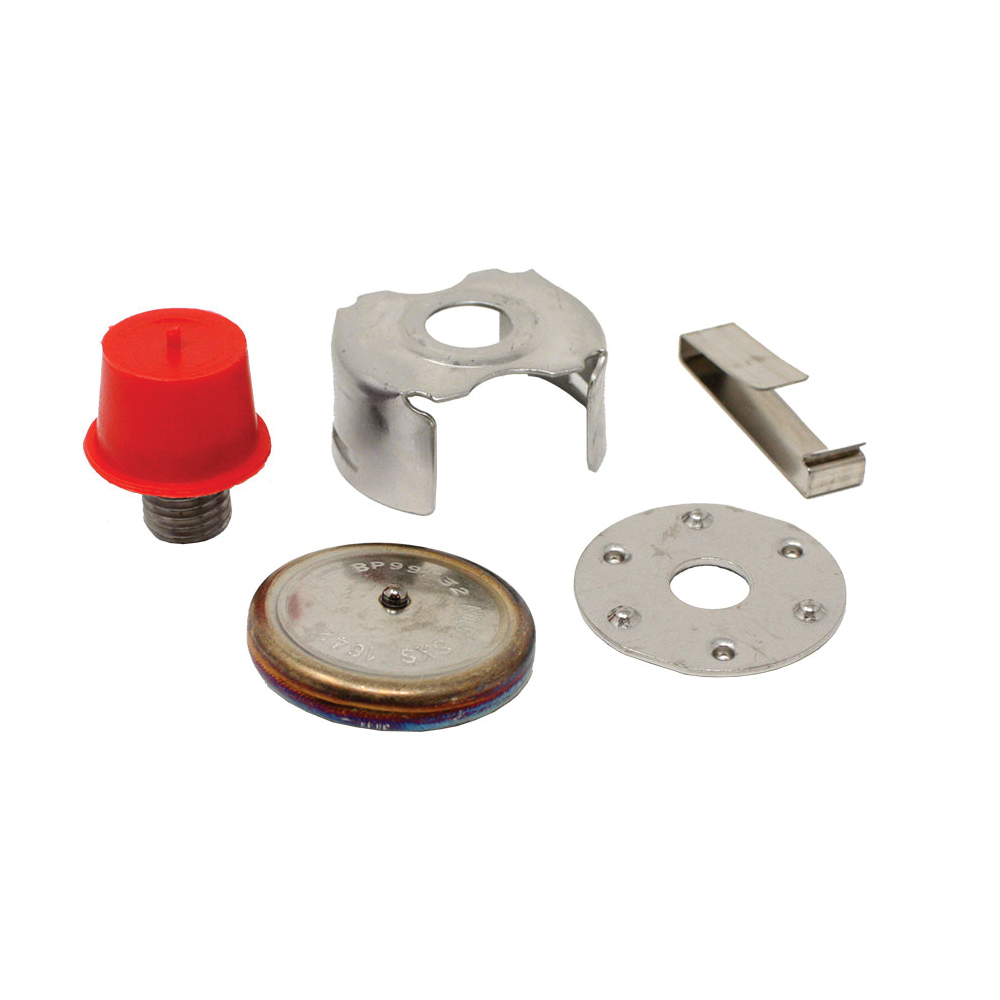

Shown: FT14 1", 1-1/2" and 2" Air Vent Assembly |
FT14 Air Vent Assembly
|

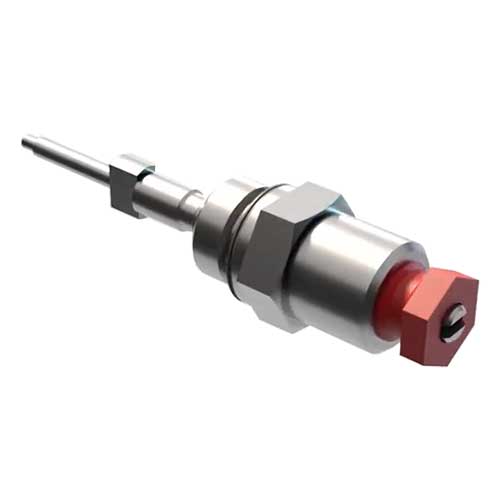

Shown: Steam Lock Release Unit Illustration |
FT14 Steam Lock Release Unit
Note the old style steam lock release assembly is also still available
|

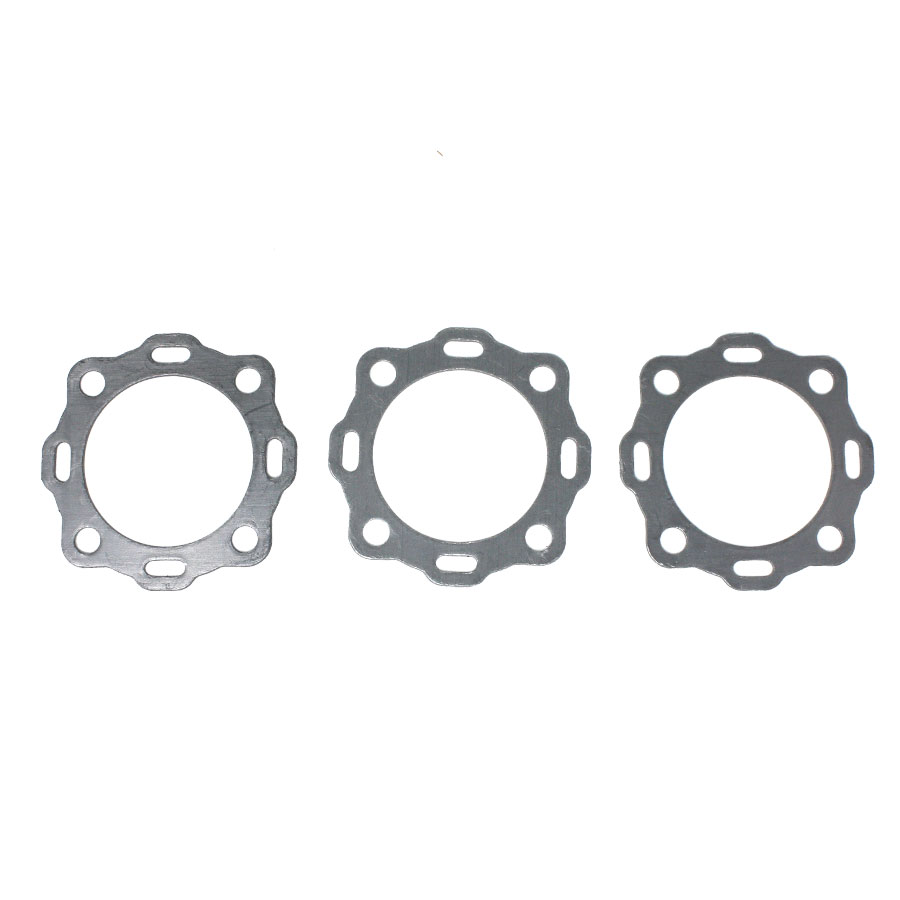

Shown: FT14 and IFT14, 1/2" and 3/4" Cover Gasket Set |
FT14 Cover Gaskets
|

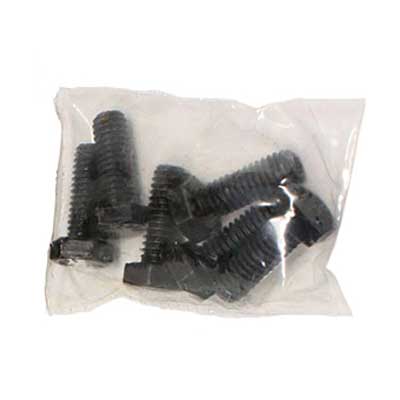

Shown: Packet of Bolts |
FT14 Cover Bolts
|

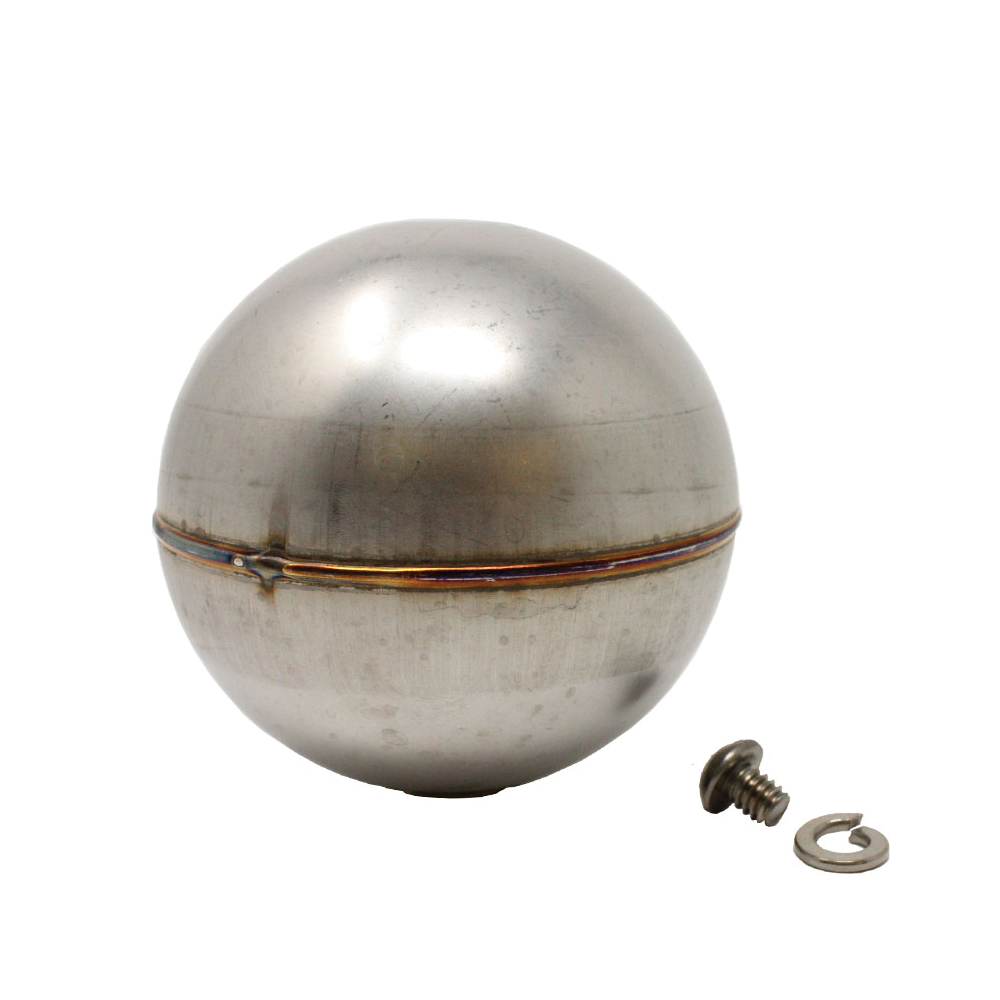

Shown: FT14 1-1/2" and 2" Ball Float |
FT14 Ball Float
|
-----------------------------------------------------------------
As an authorized distributor of Spirax Sarco, Cooney Brothers stocks a wide variety of FT14 Steam Traps and Spare Parts. Shop nearly 6000 Spirax Sarco products on our website or Contact us for engineered steam solutions.
