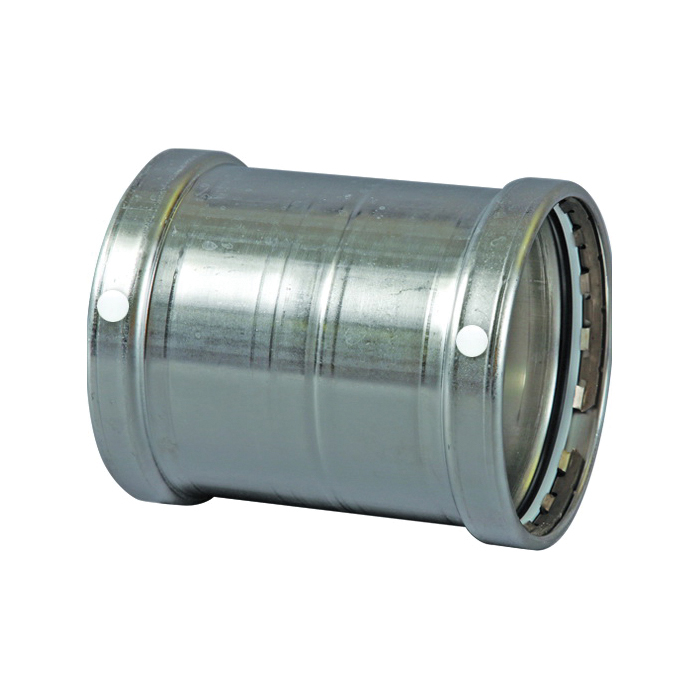

ProPress® XL 85342 Model 6015.5XL, Pipe Coupling, 2-1/2 in Nominal, Press End Style, 304 Stainless Steel, FKM Seal, Import
CBPN:204069
UPC:691514853420
MPN:85342
ProPress® XL 85342 has been discontinued by the manufacturer.
DESCRIPTION
ProPress® XL Pipe Coupling, Fitting/Connector Type: Coupling, Series: Model 6015.5XL, 2-1/2 in Nominal, Press, 200 psi, 0 To 284 deg F, 304 Stainless Steel, FKM Seal, Import
Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
ProPress® XL 85342 Model 6015.5XL, Pipe Coupling, 2-1/2 in Nominal, Press End Style, 304 Stainless Steel, FKM Seal, Import
CBPN:204069
MPN:85342
UPC:691514853420
ProPress® XL 85342 has been discontinued by the manufacturer.
DESCRIPTION
ProPress® XL Pipe Coupling, Fitting/Connector Type: Coupling, Series: Model 6015.5XL, 2-1/2 in Nominal, Press, 200 psi, 0 To 284 deg F, 304 Stainless Steel, FKM Seal, Import
Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
Specifications
Brand: ProPress® XL
Weight: 1.087 lbs
Fitting/Connector Type: Coupling
Nominal Size: 2-1/2 in
End Style: Press
Material: 304 Stainless Steel
Seal Material: FKM
Manufacturer Name: Viega
Pressure Rating: 200 psi
Temperature Rating: 0 to 284 deg F
Includes: FKM Sealing Element (White Dot)
Application: Additives, Sludge, Aeration, Lube Oil, Slurry and Compressed Air
Warranty: Limited
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: CSA Certified | FM Approved | NSF 61 | UL Listed
Item Features
- Fast and easy to use one squeeze of the trigger makes 1/2 to 4 in connections in four to seven seconds
- Reliable- achieve a consistent, strong, reliable, watertight seal
- Minimizes system downtime- Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
- Versatile- You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
- Requires less equipment
- Produces measurable results- Viega proPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
- Smart connect feature- Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
- Viega smart Connect® feature is available on all of our fittings and most of our valves
- Without stop
