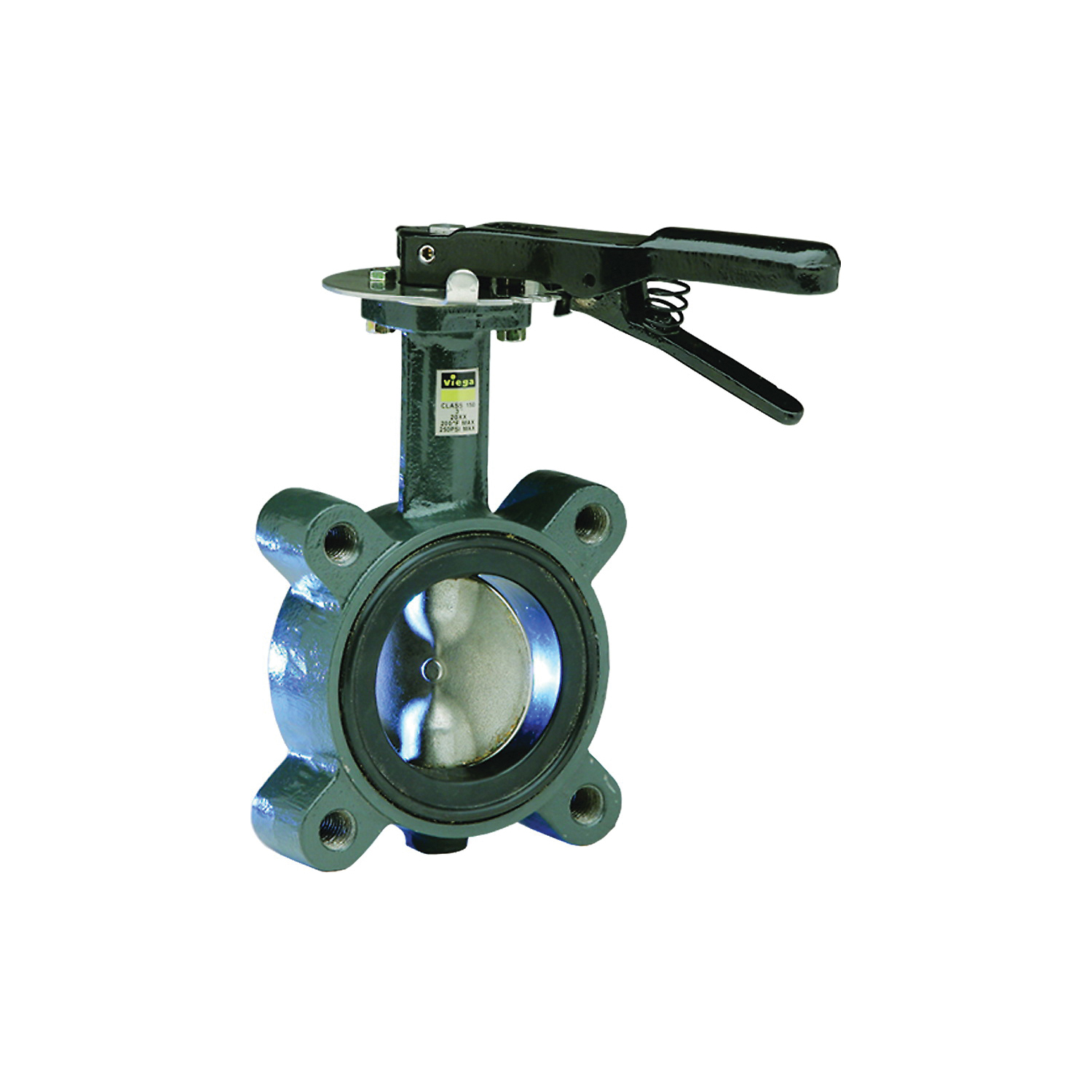

ProPress® 22075 Model 2873.81 Butterfly Valve, 3 in, Flanged, Ductile Iron Body, EPDM Softgoods, Import
CBPN:179626
UPC:691514220758
MPN:22075
Price:
$180.04 / EA
DESCRIPTION
ProPress® Butterfly Valve, Series: Model 2873.81, 3", Flanged, 0 to 250 deg F, 1.81 in Inlet to Outlet Length, 7.64 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, Stem & Pin Material: 316 Stainless Steel (Stem), EPDM Sealing Element, Import
Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
ProPress® 22075 Model 2873.81 Butterfly Valve, 3 in, Flanged, Ductile Iron Body, EPDM Softgoods, Import
CBPN:179626
MPN:22075
UPC:691514220758
Price:
$180.04 / EA
DESCRIPTION
ProPress® Butterfly Valve, Series: Model 2873.81, 3", Flanged, 0 to 250 deg F, 1.81 in Inlet to Outlet Length, 7.64 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, Stem & Pin Material: 316 Stainless Steel (Stem), EPDM Sealing Element, Import
Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
Specifications
Brand: ProPress®
Weight: 8.463 lbs
Nominal Size: 3 in
End Style: Flanged
Body Material: Ductile Iron
Disc Material: 316 Stainless Steel
Inlet to Outlet Length: 1.81 in
Manufacturer Name: Viega
Stem & Pin Material: 316 Stainless Steel (Stem)
Temperature Rating: 0 to 250 deg F
Top to Inlet Center: 7.64 in
Includes: EPDM Sealing Element (Green Dot)
Application: Potable Water Systems, Hot and Cold Water Systems, Heating Systems, Gas systems, Fire Protection Systems, Solar systems
Warranty: Limited
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: CSA Certified | FM Approved | NSF 61 | UL Listed
Item Features
- Fast and easy to use one squeeze of the trigger makes 1/2 - 4 in connections in four to seven seconds
- Reliable - achieve a consistent, strong, reliable, watertight seal
- Minimizes system downtime - Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
- Versatile - You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
- Requires less equipment
- Produces measurable results - Viega ProPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
- Smart connect feature - Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
- Lug body is polyurethane coated
- Anti-blowout stainless steel shaft
- Downstream dismantling allowed
- Bi-directional, can be mounted in all positions
- 4 bolts pattern
- Viega ProPress® bolt set model 2873.89
