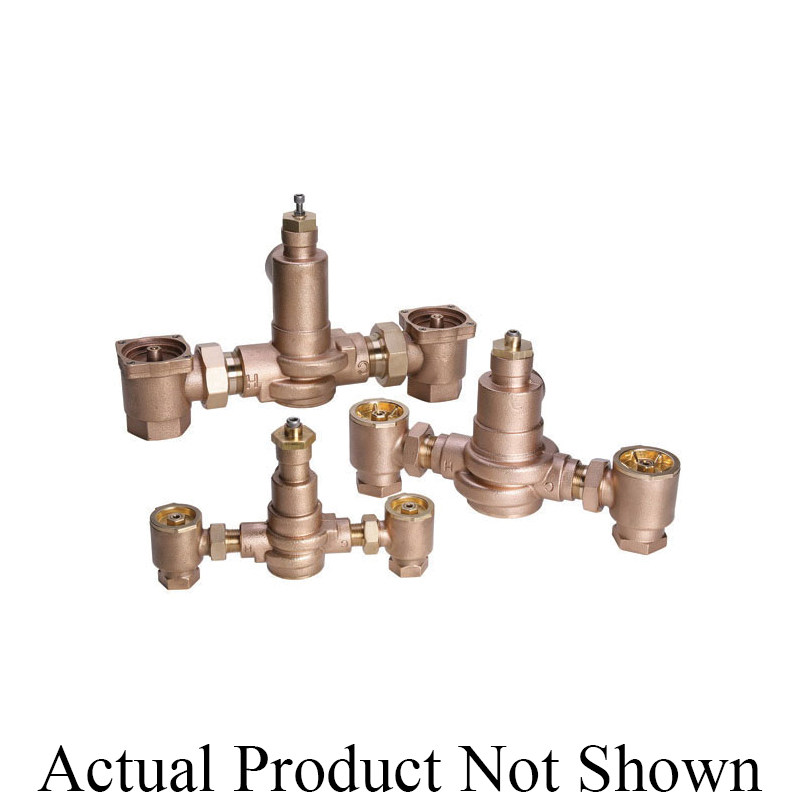

Powers™ HydroGuard® 6550052 LFMM430 XP Master Tempering Valve, 1-1/4 x 1-1/2 in Nominal, NPT End Style, 125 psi Pressure, 144 gpm Flow Rate, Brass Body, Domestic
CBPN:61019
UPC:686408614669
MPN:6550052
DESCRIPTION
Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 1-1/4 x 1-1/2 in Nominal, NPT, 125 psi, 5 to 200 deg F, 144 gpm, Media: Water, Brass Body, Rough Bronze, 15-1/4 in L, Domestic
Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5 deg F approach temperature for low temperature hot water supply. Valves are available in rough Lead Free bronze and chrome plated finish.
Powers™ HydroGuard® 6550052 LFMM430 XP Master Tempering Valve, 1-1/4 x 1-1/2 in Nominal, NPT End Style, 125 psi Pressure, 144 gpm Flow Rate, Brass Body, Domestic
CBPN:61019
MPN:6550052
UPC:686408614669
DESCRIPTION
Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 1-1/4 x 1-1/2 in Nominal, NPT, 125 psi, 5 to 200 deg F, 144 gpm, Media: Water, Brass Body, Rough Bronze, 15-1/4 in L, Domestic
Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5 deg F approach temperature for low temperature hot water supply. Valves are available in rough Lead Free bronze and chrome plated finish.
Specifications
Standards
ASSE 1017|Advanced Thermal Activation|CSA B125|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.Item Features
- Advanced thermal actuator
- Rotatable union triple-duty checkstops
- Vandal-resistant, locking mechanism to secure temperature setting
- Virtual shutoff if supply pressure fails
- Factory tested
- Mounts in any position
- 90 to 160 deg F adjustment temperature
- Dirt and lime resistant poppet and seat design
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
