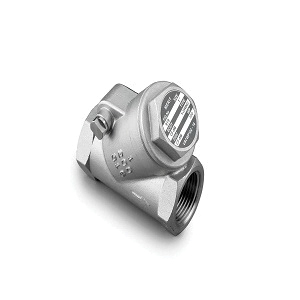

Merit Brass VSCWP102-16 V Series Y-Pattern Swing Check Valve, 1 in Nominal, FNPT End Style, 200 lb, PTFE, Stainless Steel Body, Import
CBPN:277617
UPC:671404160548
MPN:VSCWP102-16
Price:
$100.32 / EA
DESCRIPTION
Merit Brass Swing Check Valve, Y-Pattern, Series: V Series, 1 in Nominal, Thread End Style, 200 psi Pressure, 200 lb Pressure Class, 350 deg F, No Low Lead Compliance, 9.5 gpm Flow Rate, Full Port, 3.54 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Trim, PTFE Softgoods, Domestic/Import: Import
Merit Brass VSCWP102-16 V Series Y-Pattern Swing Check Valve, 1 in Nominal, FNPT End Style, 200 lb, PTFE, Stainless Steel Body, Import
CBPN:277617
MPN:VSCWP102-16
UPC:671404160548
Price:
$100.32 / EA
DESCRIPTION
Merit Brass Swing Check Valve, Y-Pattern, Series: V Series, 1 in Nominal, Thread End Style, 200 psi Pressure, 200 lb Pressure Class, 350 deg F, No Low Lead Compliance, 9.5 gpm Flow Rate, Full Port, 3.54 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Trim, PTFE Softgoods, Domestic/Import: Import
Specifications
Brand: Merit Brass
Weight: 0.826 lbs
Nominal Size: 1 in
End Style: FNPT
Pressure Class: 200 lb
Low Lead Compliance: No
Softgoods Material: PTFE
Body Material: Stainless Steel
Flow Rate: 9.5 gpm
Inlet to Outlet Length: 3.54 in
Manufacturer Name: Merit Brass
Port Type: Full
Pressure Rating: 200 psi
Series: V Series
Temperature Rating: 350 deg F
Top to Inlet Center: 2.6 in
Trim Material: Stainless Steel
Type: Y-Pattern
Domestic/Import: Import
Country of Origin: TW
Standards and Approvals: API 598 | ASME B16.34 | ASTM A351 CF8M Body/Disc
Item Features
- Stainless steel disc
- PTFE gasket packing
