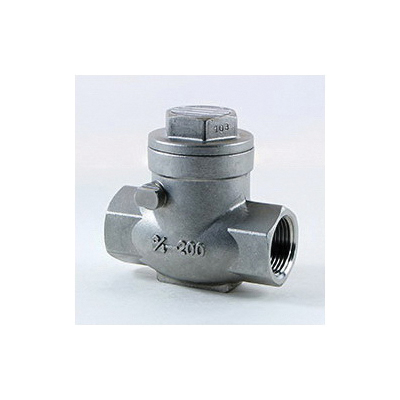

Merit Brass VSC102-12 Swing Check Valve, 3/4 in Nominal, Threaded End Style, 200 lb, PTFE Softgoods, Stainless Steel Body, Import
CBPN:8404
UPC:671404157616
MPN:VSC102-12
Price:
$72.37 / EA
DESCRIPTION
Merit Brass Swing Check Valve, Series: V Series, 3/4 in Nominal, Threaded End Style, 200 psi Pressure, 200 lb Pressure Class, 350 deg F, No Low Lead Compliance, 16.3 gpm Flow Rate, Full Port, 3.17 in Inlet to Outlet Length, 2.17 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Trim, PTFE Softgoods, Import
Merit Brass VSC102-12 Swing Check Valve, 3/4 in Nominal, Threaded End Style, 200 lb, PTFE Softgoods, Stainless Steel Body, Import
CBPN:8404
MPN:VSC102-12
UPC:671404157616
Price:
$72.37 / EA
DESCRIPTION
Merit Brass Swing Check Valve, Series: V Series, 3/4 in Nominal, Threaded End Style, 200 psi Pressure, 200 lb Pressure Class, 350 deg F, No Low Lead Compliance, 16.3 gpm Flow Rate, Full Port, 3.17 in Inlet to Outlet Length, 2.17 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Trim, PTFE Softgoods, Import
Specifications
Brand: Merit Brass
Weight: 0.46 lbs
Nominal Size: 3/4 in
End Style: Thread
Pressure Class: 200 lb
Low Lead Compliance: No
Softgoods Material: PTFE
Body Material: Stainless Steel
Flow Rate: 16.3 gpm
Inlet to Outlet Length: 3.17 in
Manufacturer Name: Merit Brass
Port Type: Full
Pressure Rating: 200 psi
Series: V Series
Temperature Rating: 350 deg F
Top to Inlet Center: 2.17 in
Trim Material: Stainless Steel
Domestic/Import: Import
Country of Origin: TW
Standards and Approvals: API 598 | ASME B16.34 | ASTM A351 CF8M Body/Disc
Item Features
- Stainless steel disc
- PTFE gasket
