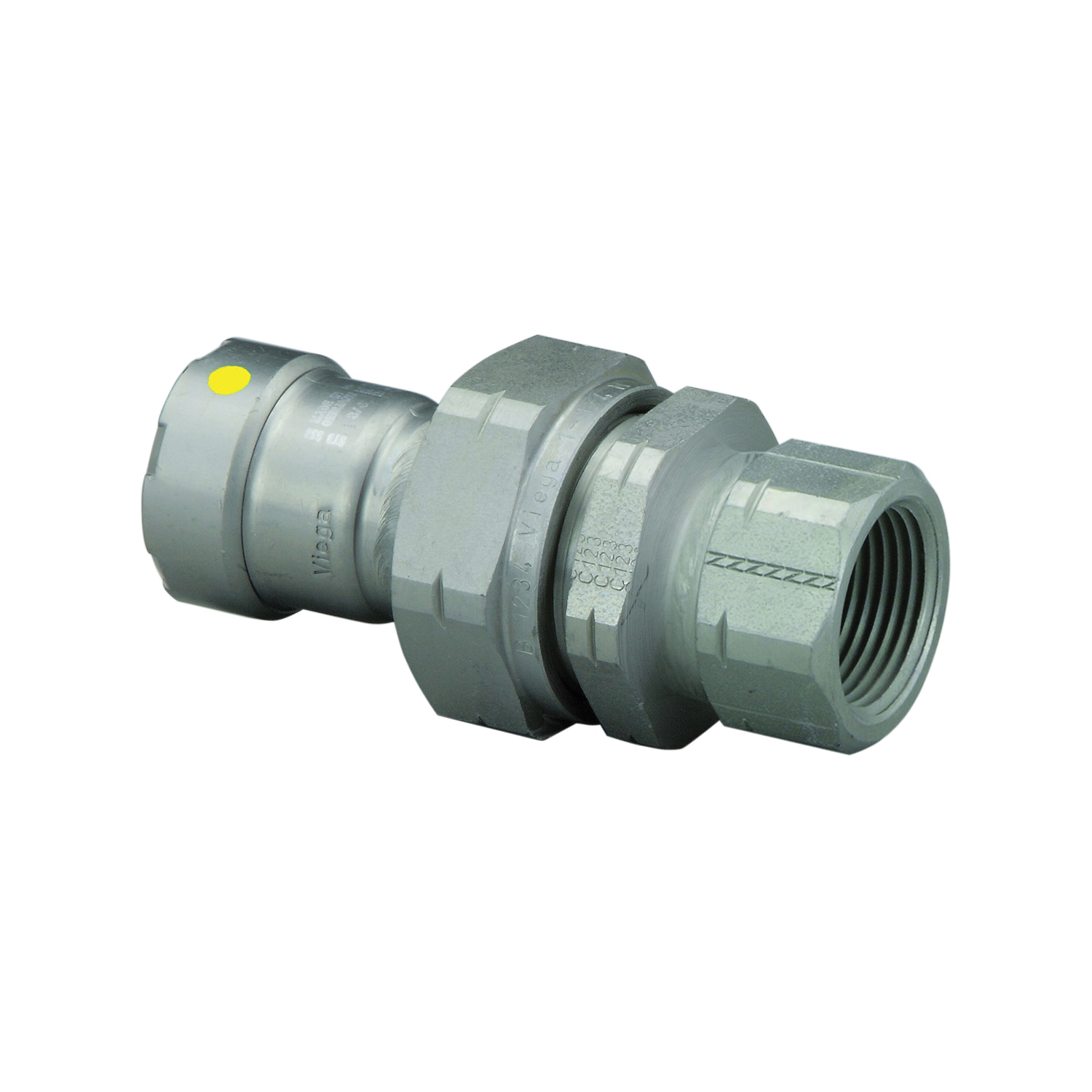

MegaPress®G 25666 Model 6662, Union, 1-1/4 in, Press x FNPT, Carbon Steel, HNBR Seal, Import
CBPN:241573
UPC:691514256665
MPN:25666
Price:
$135.27 / EA
DESCRIPTION
MegaPress®G Union, Fitting/Connector Type: Union, Series: Model 6662, 1-1/4 in Nominal, Press x FNPT, 200 psi, -40 to 180 deg F, Carbon Steel, 4.35 in L, HNBR Seal, Import
Viega MegaPress®G is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress®G fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
MegaPress®G 25666 Model 6662, Union, 1-1/4 in, Press x FNPT, Carbon Steel, HNBR Seal, Import
CBPN:241573
MPN:25666
UPC:691514256665
Price:
$135.27 / EA
DESCRIPTION
MegaPress®G Union, Fitting/Connector Type: Union, Series: Model 6662, 1-1/4 in Nominal, Press x FNPT, 200 psi, -40 to 180 deg F, Carbon Steel, 4.35 in L, HNBR Seal, Import
Viega MegaPress®G is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress®G fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
Specifications
Brand: MegaPress®G
Weight: 2.343 lbs
Fitting/Connector Type: Union
Nominal Size: 1-1/4 in
End Style: Press x FNPT
Material: Carbon Steel
Seal Material: HNBR
Dimensions: 4.35 in L
Manufacturer Name: Viega
Pressure Rating: 200 psi
Temperature Rating: -40 to 180 deg F
Includes: HNBR Sealing Element (Yellow Dot)
Application: For use in compressed air, fuel gas and heating oil applications
Warranty: Limited
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: ASME B31 | ANSI LC4/CSA 6.32 | ABS Listed | CRN No. OA14541.6 | CSA B149.1 | GL Listed | IAPMO LC4 | ICC LC4 | International Plumbing Code | International Mechanical Code | International Fuel Gas Code | LR Listed | Uniform Plumbing Code | Uniform Mechanical Code
Item Features
- For use with SCH 5 to SCH 40 carbon steel piping system
- Makes secure press connections in less than seven seconds
- No oil or heavy threading equipment needed
- Patented Viega Smart Connect® feature
- Connections can be made wet or dry
- 125 psi maximum for fuel gas application
- Model 6662
