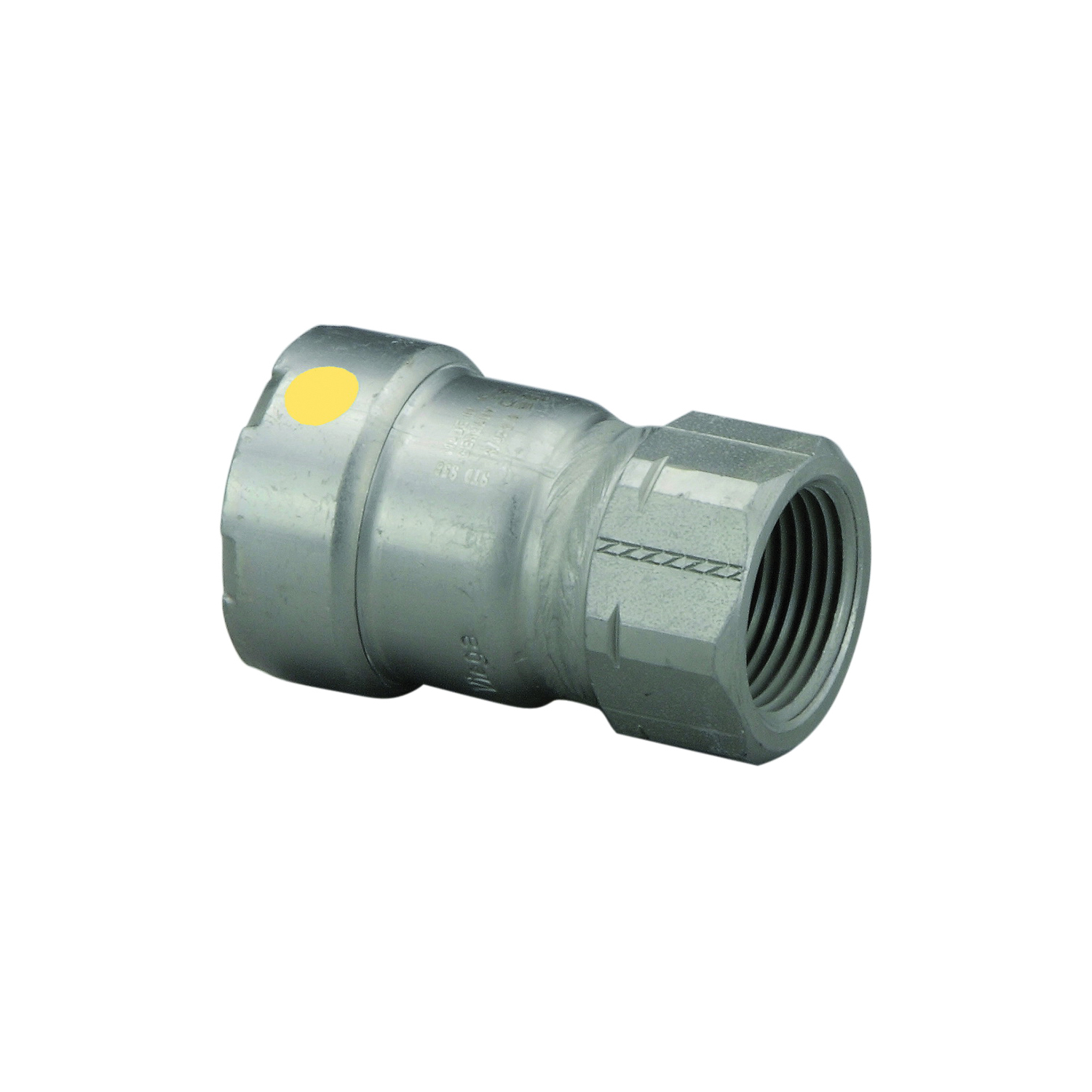

MegaPress®G 25621 Model 6612, Pipe Adapter, 1-1/2 x 1-1/4 in, Press x FNPT, Carbon Steel, HNBR Seal, Import
CBPN:157616
UPC:691514256214
MPN:25621
Price:
$46.59 / EA
DESCRIPTION
MegaPress®G Pipe Adapter, Fitting/Connector Type: Adapter, Series: Model 6612, 1-1/2 x 1-1/4 in Nominal, Press x FNPT, -40 To 180 deg F, Carbon Steel, 3.41 in L, HNBR Seal, Import
Viega MegaPress®G is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress®G fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
MegaPress®G 25621 Model 6612, Pipe Adapter, 1-1/2 x 1-1/4 in, Press x FNPT, Carbon Steel, HNBR Seal, Import
CBPN:157616
MPN:25621
UPC:691514256214
Price:
$46.59 / EA
DESCRIPTION
MegaPress®G Pipe Adapter, Fitting/Connector Type: Adapter, Series: Model 6612, 1-1/2 x 1-1/4 in Nominal, Press x FNPT, -40 To 180 deg F, Carbon Steel, 3.41 in L, HNBR Seal, Import
Viega MegaPress®G is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress®G fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
Specifications
Brand: MegaPress®G
Weight: 0.849 lbs
Fitting/Connector Type: Adapter
Nominal Size: 1-1/2 x 1-1/4 in
End Style: Press x FNPT
Material: Carbon Steel
Seal Material: HNBR
Dimensions: 3.41 in L
Manufacturer Name: Viega
Temperature Rating: -40 to 180 deg F
Includes: HNBR Sealing Element (Yellow Dot)
Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: ABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58
Item Features
- Makes secure press connections in less than seven seconds
- No oil or heavy threading equipment needed
- Patented Viega Smart Connect® feature
- More than 100 different configurations
- Connections can be made wet or dry
- Carbon steel piping system SCH 5 to SCH 40
