MegaPressG Pipe Coupling with Stop

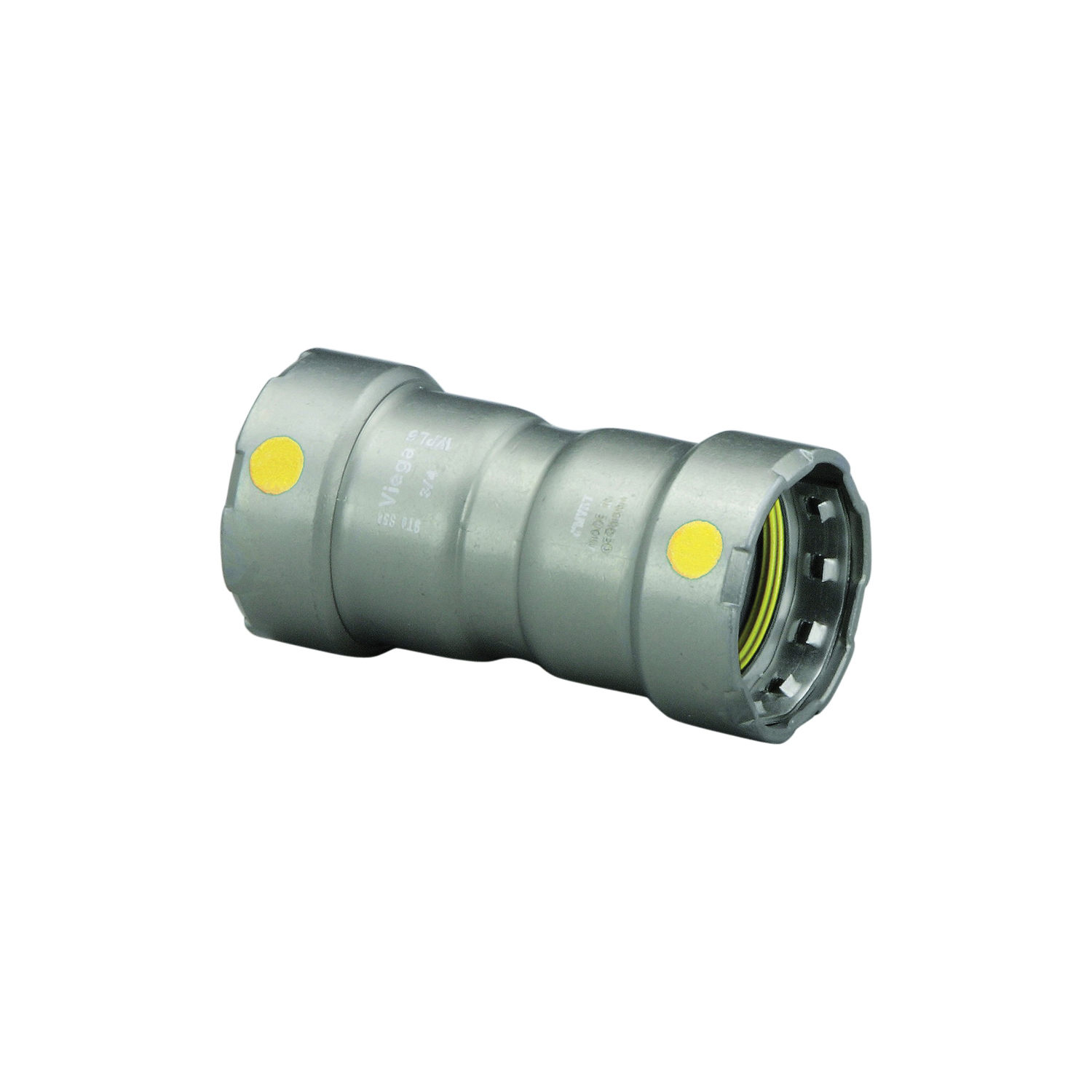

MegaPress®G 25021 Model 6615, Pipe Coupling with Stop, 1-1/2 in Nominal, Press End Style, Carbon Steel, HNBR Seal, Import

CBPN:157562

UPC:691514250212

MPN:25021

Price:
$47.31 / EA

DESCRIPTION

MegaPress®G Pipe Coupling, Fitting/Connector Type: Coupling, Series: Model 6615, 1-1/2 in Nominal, Press, -40 To 180 deg F, Carbon Steel, 4.63 in L, HNBR Seal, Import

Viega MegaPress®G is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress®G fittings for black iron pipe reduce installation time and eliminate messy cutting oils.

MegaPress®G 25021 Model 6615, Pipe Coupling with Stop, 1-1/2 in Nominal, Press End Style, Carbon Steel, HNBR Seal, Import

CBPN:157562

MPN:25021

UPC:691514250212

Price:
$47.31 / EA

Viega MegaPressG

DESCRIPTION

MegaPress®G Pipe Coupling, Fitting/Connector Type: Coupling, Series: Model 6615, 1-1/2 in Nominal, Press, -40 To 180 deg F, Carbon Steel, 4.63 in L, HNBR Seal, Import

Viega MegaPress®G is the first carbon steel press system for gas and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress®G fittings for black iron pipe reduce installation time and eliminate messy cutting oils.

Specifications

BrandMegaPress®G
Weight1.125 lbs
Fitting/Connector TypeCoupling
Nominal Size1-1/2 in
End StylePress
MaterialCarbon Steel
Seal MaterialHNBR
Dimensions4.63 in L
Manufacturer NameViega
Temperature Rating-40 to 180 deg F
IncludesHNBR Sealing Element (Yellow Dot)
ApplicationNatural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
Domestic/ImportImport
Country of OriginDE
Standards and ApprovalsABS Listed | ANSI LC4/CSA 6.32 | ASME B31 | CRN OA14541.6 | CSA B149.1 | FM 1920 | GL Listed | LR Certified | NFPA 13/13D/13R/31/54/58

Item Features

  • Makes secure press connections in less than seven seconds
  • No oil or heavy threading equipment needed
  • Patented Viega Smart Connect® feature
  • More than 100 different configurations
  • Connections can be made wet or dry
  • For use with carbon steel piping system sch 5 to 40
