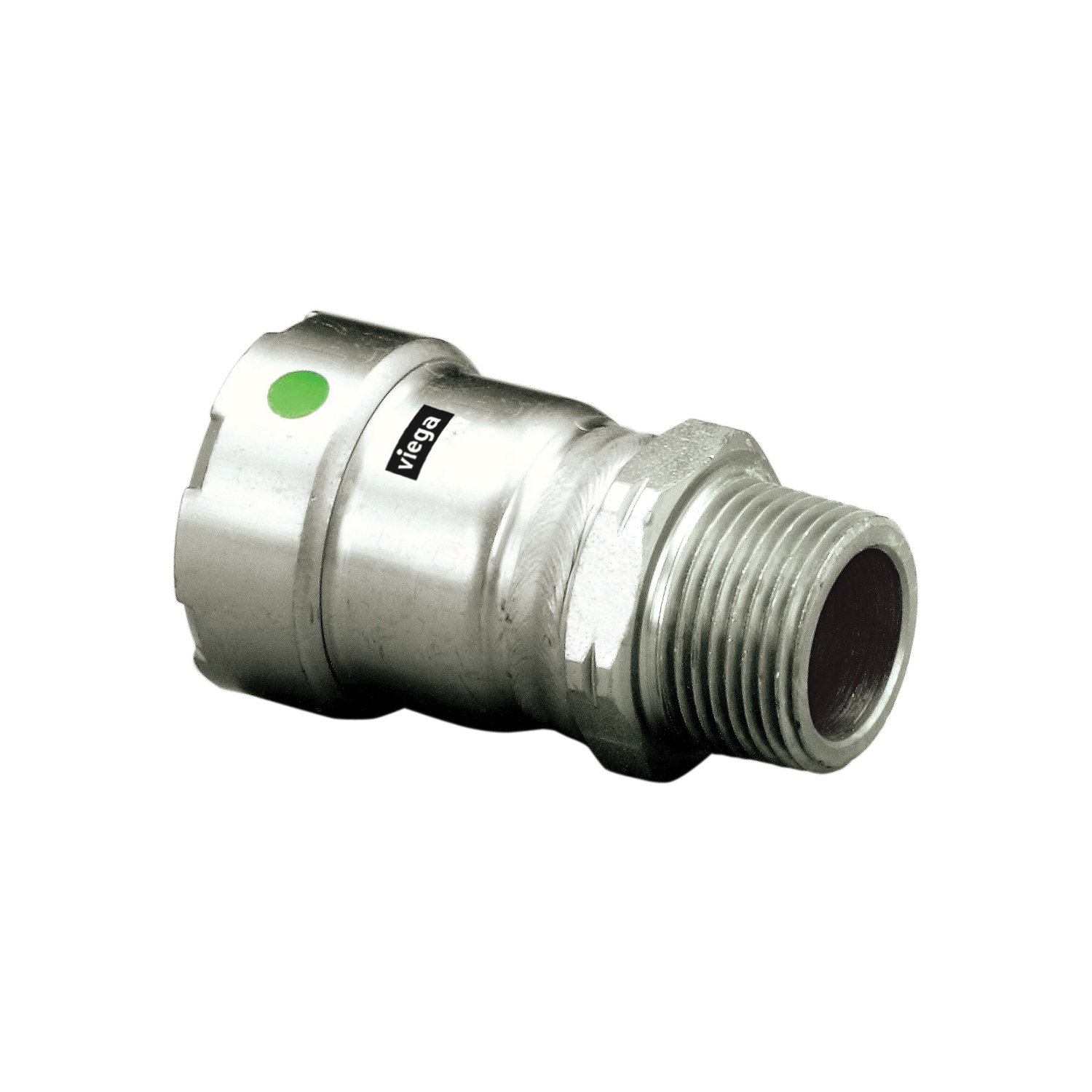

MegaPress® 90245 Model 5111, Adapter, 1 in, Press x MNPT, 316 Stainless Steel, EPDM Seal, Import
CBPN:211340
UPC:691514902456
MPN:90245
DESCRIPTION
MegaPress® Adapter, Fitting/Connector Type: Adapter, Series: Model 5111, 1 in Nominal, Press x MNPT, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.05 in L, EPDM Seal, Import
Viega MegaPress® Stainless 316 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for many commercial and industrial applications. MegaPress® Stainless 316 fittings utilize a versatile EPDM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 316 system can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.
MegaPress® 90245 Model 5111, Adapter, 1 in, Press x MNPT, 316 Stainless Steel, EPDM Seal, Import
CBPN:211340
MPN:90245
UPC:691514902456
DESCRIPTION
MegaPress® Adapter, Fitting/Connector Type: Adapter, Series: Model 5111, 1 in Nominal, Press x MNPT, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.05 in L, EPDM Seal, Import
Viega MegaPress® Stainless 316 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for many commercial and industrial applications. MegaPress® Stainless 316 fittings utilize a versatile EPDM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 316 system can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.
Specifications
Item Features
- Patented Viega Smart Connect® makes secure connection in less than 7 sec
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No welding, grinding or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
- Wide range of fitting configurations
- Eliminate threading and welding
- No fire watches, hot work permits or gas freezing
- Makes secure press connections from 1/2 to 2 in less than seven seconds
- Compatible with existing press tools
- 316 stainless carries an NSF-16 potable water rating
- Model 5111
